The RO Pretreatment Multi Media Filter is specially designed to improve the performance of reverse osmosis systems by reducing suspended solids and turbidity before membrane filtration. Stable pretreatment significantly decreases membrane fouling, extends membrane service life, and improves overall water treatment efficiency.

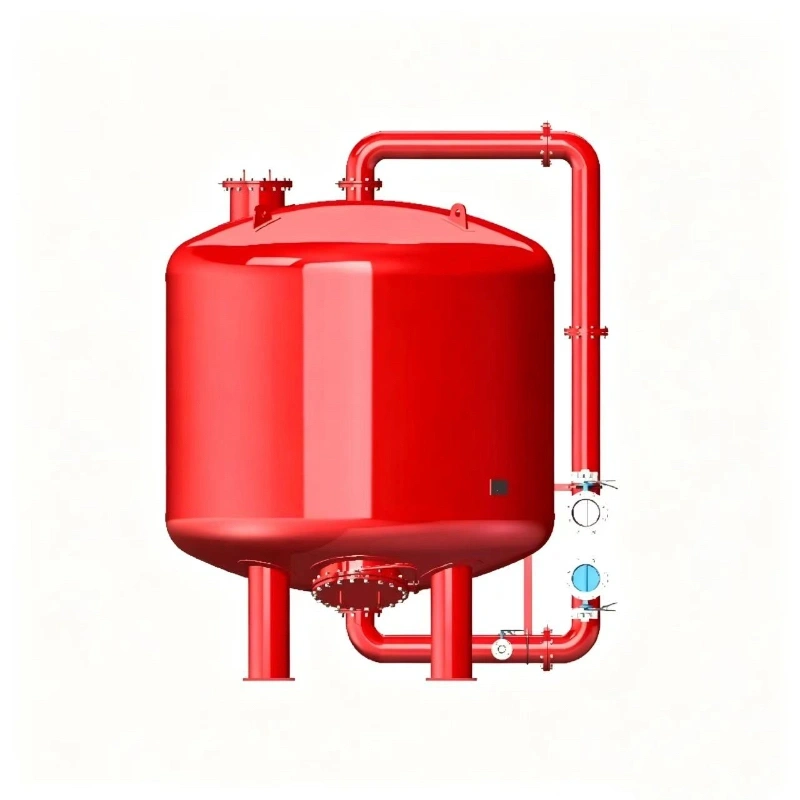

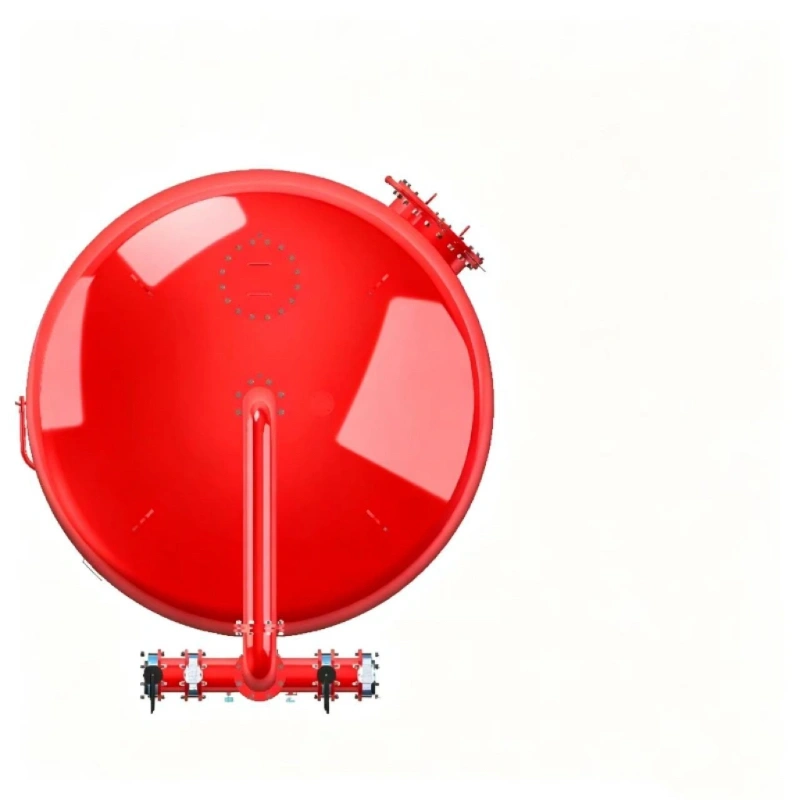

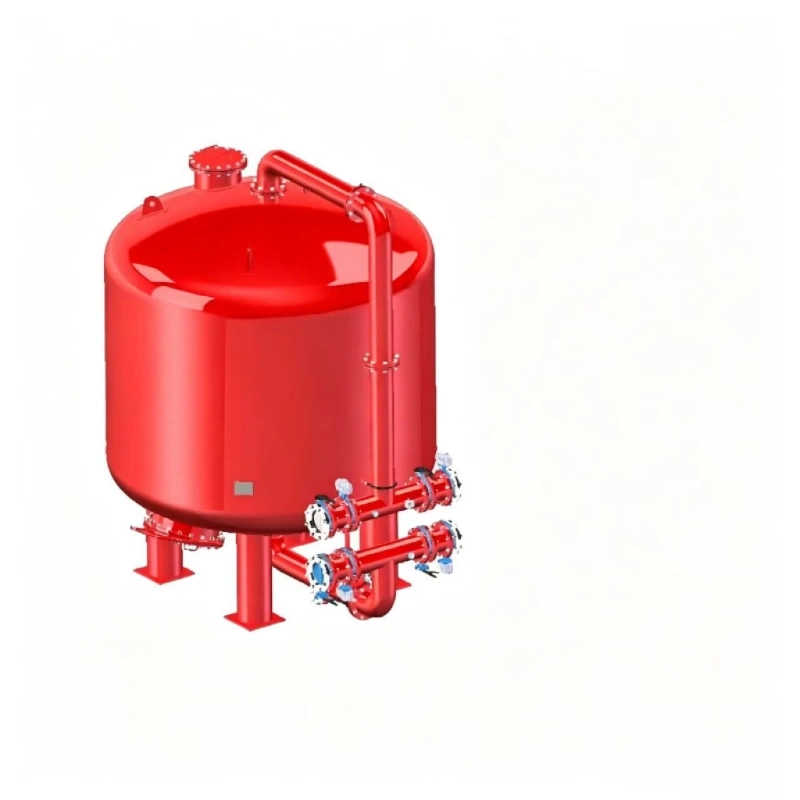

The Multi Media Filter is a highly efficient pressure filtration system designed for industrial and municipal water treatment applications. By utilizing multiple layers of filtration media with different particle sizes, the system effectively removes suspended solids, turbidity, sediment, and other impurities from water.
The filtration process is based on depth filtration technology, allowing larger particles to be retained in the upper media layer while finer particles are captured in the deeper layers. This structure significantly improves filtration efficiency, extends filtration cycles, and reduces maintenance frequency.
Equipped with automatic or manual backwashing functions, the system ensures stable operation, low pressure loss, and long service life under various water treatment conditions.
The Multi Media Filter is widely used as pretreatment equipment for reverse osmosis systems, cooling water systems, wastewater reuse, seawater desalination, and industrial process water treatment.
Features of Automatic Multi Media Filter
1. Efficient Depth Filtration
· Multi-layer filtration media improve filtration performance; · Effectively removes suspended solids, turbidity, and sediment; · Stable filtration efficiency under continuous operation;
2. Reliable Structure Design
· Heavy-duty carbon steel or stainless steel vessel available; · Corrosion-resistant internal and external coating options; · Designed for long-term industrial operation;
3. Flexible Filtration Media Options
· Quartz sand, anthracite, garnet, activated carbon, and customized media available; · Media selection based on water quality and project requirements; · Suitable for various industrial and municipal applications;
· Optimized hydraulic distribution design; · Stable water flow and low operating resistance; · Energy-saving operation with long filtration cycles;
6. Flexible Customization
· Vertical and horizontal structures available; · Available in carbon steel, SS304, and SS316L materials; · Customizable flow rate, vessel size, pressure rating, and control system;
Application Areas for Multi Media Filter
Industrial circulating cooling water systems
RO pretreatment systems
Municipal water treatment plants
Wastewater recycling and reuse systems
Seawater desalination pretreatment
Irrigation and agricultural water filtration
Power plant and utility water systems
Steel, petrochemical, and chemical industries
Paper making and textile industries
Industrial process water treatment
After-Sales Service
1.Professional Technical Support
Professional technical consultation, system selection, and installation guidance are provided throughout the project process.
2.Warranty Service
The equipment comes with a one-year warranty. During the warranty period, free technical support and troubleshooting assistance are provided.
3.Maintenance and Spare Parts Support
Lifetime maintenance service is available. Spare parts and replacement filter elements can be supplied continuously according to customer requirements.
4.Remote Support
Remote technical assistance for commissioning, operation, and troubleshooting is available via online communication platforms.
Technical Parameters
Technical Parameters
Model
FDZ80
FDZ88
FDZ96
FDZ104
FDZ112
FDZ120
Tank Diameter (mm)
2000
2200
2400
2600
2800
3000
Inlet/Outlet Pipe Diameter (mm)
DN100
DN125
DN125
DN125
DN150
DN150
Tank Material
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
Tank Anti-corrosion Treatment
Paint Anti-corrosion
Paint Anti-corrosion
Paint Anti-corrosion
Paint Anti-corrosion
Paint Anti-corrosion
Paint Anti-corrosion
Single Unit Filtration Area (m²)
3
3.8
4.5
5.3
6.1
7
Filtration Velocity (m/h)
10-15
10-15
10-15
10-15
10-15
10-15
Single Unit Treatment Capacity (m³/h)
30-45
40-60
45-70
50-80
60-90
70-100
Working Pressure (MPa)
0.2-0.4
0.2-0.4
0.2-0.4
0.2-0.4
0.2-0.4
0.2-0.4
Backwashing Intensity (L/(s·m²))
8-12
8-12
8-12
8-12
8-12
8-12
Single Tank Backwashing Duration (s)
120
180
200
300
300
500
Backwashing Interval (h)
4-8
4-8
4-8
4-8
4-8
4-8
Backwashing Control Differential Pressure (MPa)
0.08
0.08
0.08
0.08
0.08
0.08
Filter Media Type
Quartz Sand + Anthracite
Quartz Sand + Anthracite
Quartz Sand + Anthracite
Quartz Sand + Anthracite
Quartz Sand + Anthracite
Quartz Sand + Anthracite
Tank Net Weight (t)
2.5
2.7
3
3.5
4
4.5
Tank Operating Weight (t)
21
26
32
38
45
51
Note: Some parameters in the table will be appropriately adjusted according to actual needs.
FAQs
What is a multi media filter used for?
A multi media filter is used to remove suspended solids, turbidity, sediment, and impurities from water treatment systems.
Is a multi media filter suitable for RO pretreatment?
Yes. Multi media filters are widely used as pretreatment equipment for reverse osmosis systems to protect RO membranes.
Do you offer customized water treatment solutions?
Yes. We provide customized filtration and water treatment solutions according to flow rate, water quality, pressure, and project requirements.
What industries are your filtration systems suitable for?
Our filtration systems are widely used in industrial water treatment, municipal water supply, cooling water systems, wastewater reuse, seawater desalination, irrigation, and process water applications.
Can your equipment support automatic operation?
Yes. Our systems can be equipped with PLC automatic control, differential pressure monitoring, timer control, and remote communication functions.
