Municipal Water Multi Media Filter System Supplier
Product Introduction

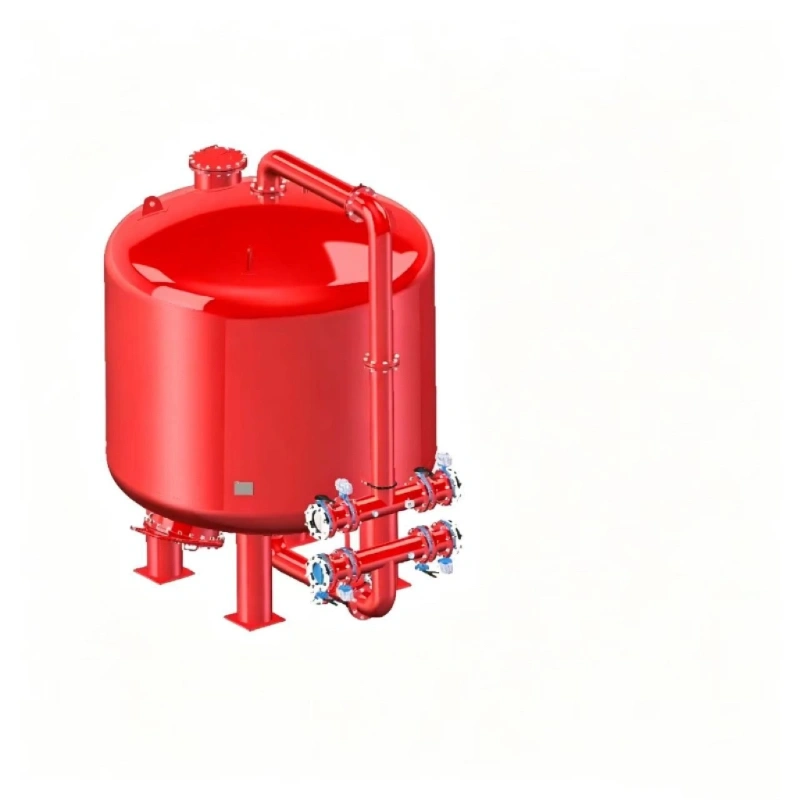

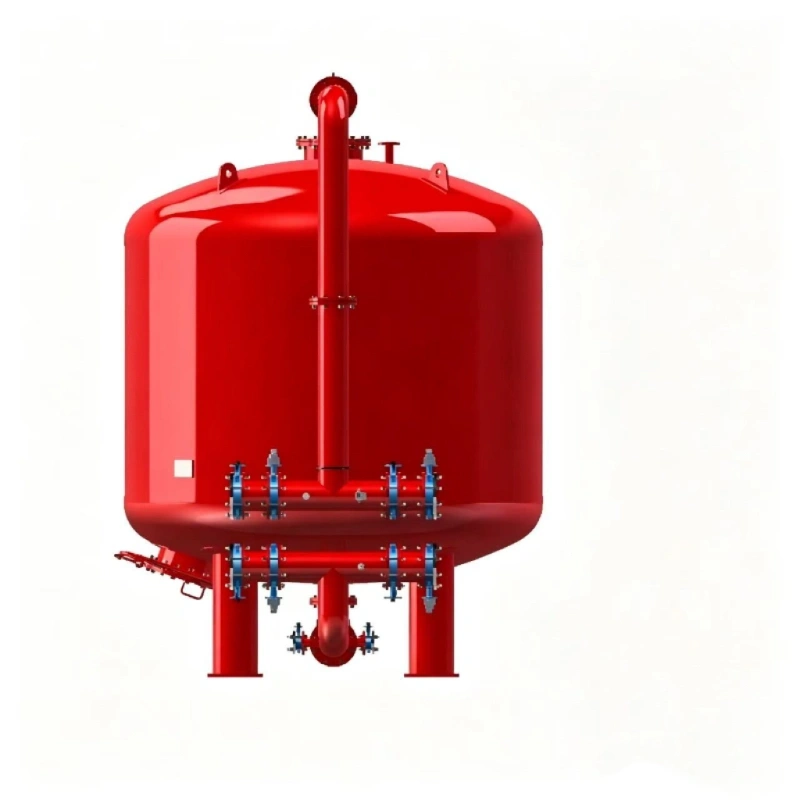

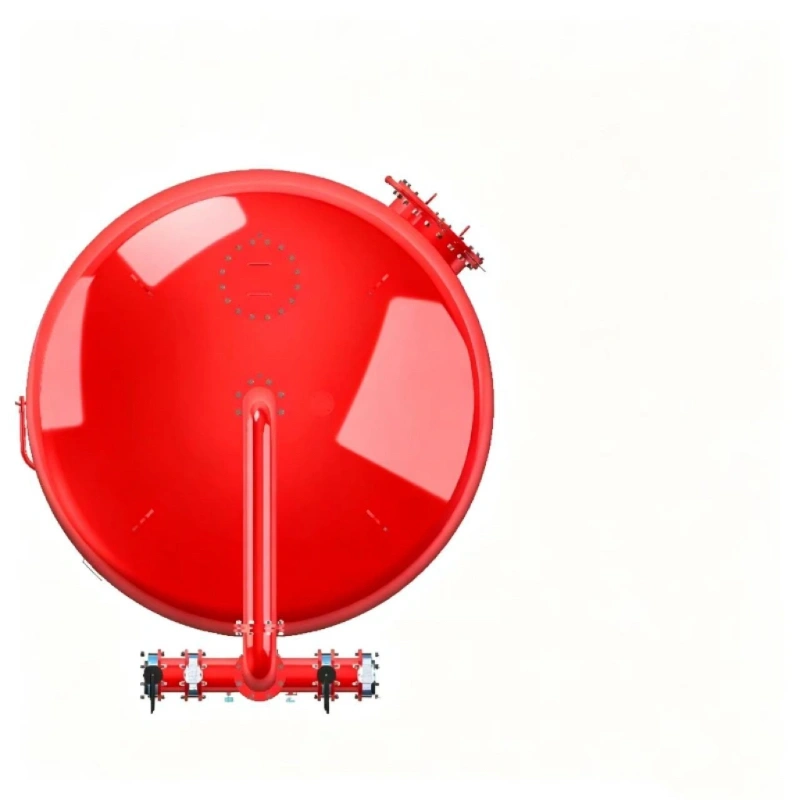

The Municipal Water Multi Media Filter System is designed for large-scale water purification projects requiring stable and efficient removal of suspended solids. The filter combines multiple filtration media to improve water clarity while reducing operating costs. It is suitable for municipal water plants, industrial facilities, and public water supply systems.
The Automatic Multi Media Water Filtration Equipment is developed to provide reliable suspended solids removal for industrial and municipal water treatment applications. Through an optimized combination of filtration media and intelligent automatic backwash control, the system delivers consistent water quality while minimizing operating costs.
Designed for long-term continuous operation, the filter features a durable pressure vessel, efficient hydraulic distribution, and flexible engineering options. It can operate independently or as part of complete water treatment systems including UF, RO, and recycled water treatment plants.
Its modular design allows simple installation, easy expansion, and customized configurations for different industries and water qualities..
Engineering Advantages
Optimized Hydraulic Distribution
Specially designed inlet and outlet distributors ensure even water flow across the entire filtration media bed, maximizing filtration efficiency.
Customized Media Design
Different filtration media combinations are selected according to raw water characteristics, helping achieve the best treatment performance.;
High Structural Strength
Pressure vessels are manufactured according to industrial standards with excellent corrosion resistance and mechanical strength.
Intelligent Automation
The filter supports timer-controlled or differential pressure-controlled automatic backwashing for reliable unattended operation.
Installation Recommendations
Install on a level concrete foundation. Provide adequate maintenance space around the vessel. Install pressure gauges before and after the filter. Ensure proper drainage for backwash discharge. Follow recommended piping layouts to maintain hydraulic balance.
Operating Recommendations
Monitor pressure difference regularly.
Backwash automatically when differential pressure reaches the preset value.
Inspect filter media periodically. Replace damaged internal components promptly.
Perform scheduled maintenance according to operating conditions.
Performance Benefits
Excellent suspended solids removal
Stable filtration efficiency
Low operating pressure loss
Automatic cleaning operation
Reduced maintenance workload Long media service life
Reliable industrial performance
Flexible system integration
After-Sales Service
1.Professional Technical Support
Professional technical consultation, system selection, and installation guidance are provided throughout the project process.
2.Warranty Service
The equipment comes with a one-year warranty. During the warranty period, free technical support and troubleshooting assistance are provided.
3.Maintenance and Spare Parts Support
Lifetime maintenance service is available. Spare parts and replacement filter elements can be supplied continuously according to customer requirements.
4.Remote Support
Remote technical assistance for commissioning, operation, and troubleshooting is available via online communication platforms.
Technical Parameters
Technical Parameters
Model
FDZ80
FDZ88
FDZ96
FDZ104
FDZ112
FDZ120
Tank Diameter (mm)
2000
2200
2400
2600
2800
3000
Inlet/Outlet Pipe Diameter (mm)
DN100
DN125
DN125
DN125
DN150
DN150
Tank Material
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
Tank Anti-corrosion Treatment
Paint Anti-corrosion
Paint Anti-corrosion
Paint Anti-corrosion
Paint Anti-corrosion
Paint Anti-corrosion
Paint Anti-corrosion
Single Unit Filtration Area (m²)
3
3.8
4.5
5.3
6.1
7
Filtration Velocity (m/h)
10-15
10-15
10-15
10-15
10-15
10-15
Single Unit Treatment Capacity (m³/h)
30-45
40-60
45-70
50-80
60-90
70-100
Working Pressure (MPa)
0.2-0.4
0.2-0.4
0.2-0.4
0.2-0.4
0.2-0.4
0.2-0.4
Backwashing Intensity (L/(s·m²))
8-12
8-12
8-12
8-12
8-12
8-12
Single Tank Backwashing Duration (s)
120
180
200
300
300
500
Backwashing Interval (h)
4-8
4-8
4-8
4-8
4-8
4-8
Backwashing Control Differential Pressure (MPa)
0.08
0.08
0.08
0.08
0.08
0.08
Filter Media Type
Quartz Sand + Anthracite
Quartz Sand + Anthracite
Quartz Sand + Anthracite
Quartz Sand + Anthracite
Quartz Sand + Anthracite
Quartz Sand + Anthracite
Tank Net Weight (t)
2.5
2.7
3
3.5
4
4.5
Tank Operating Weight (t)
21
26
32
38
45
51
Note: Some parameters in the table will be appropriately adjusted according to actual needs.
FAQs
What is a multi media filter used for?
A multi media filter is used to remove suspended solids, turbidity, sediment, and impurities from water treatment systems.
Is a multi media filter suitable for RO pretreatment?
Yes. Multi media filters are widely used as pretreatment equipment for reverse osmosis systems to protect RO membranes.
Do you offer customized water treatment solutions?
Yes. We provide customized filtration and water treatment solutions according to flow rate, water quality, pressure, and project requirements.
What industries are your filtration systems suitable for?
Our filtration systems are widely used in industrial water treatment, municipal water supply, cooling water systems, wastewater reuse, seawater desalination, irrigation, and process water applications.
Can your equipment support automatic operation?
Yes. Our systems can be equipped with PLC automatic control, differential pressure monitoring, timer control, and remote communication functions.
