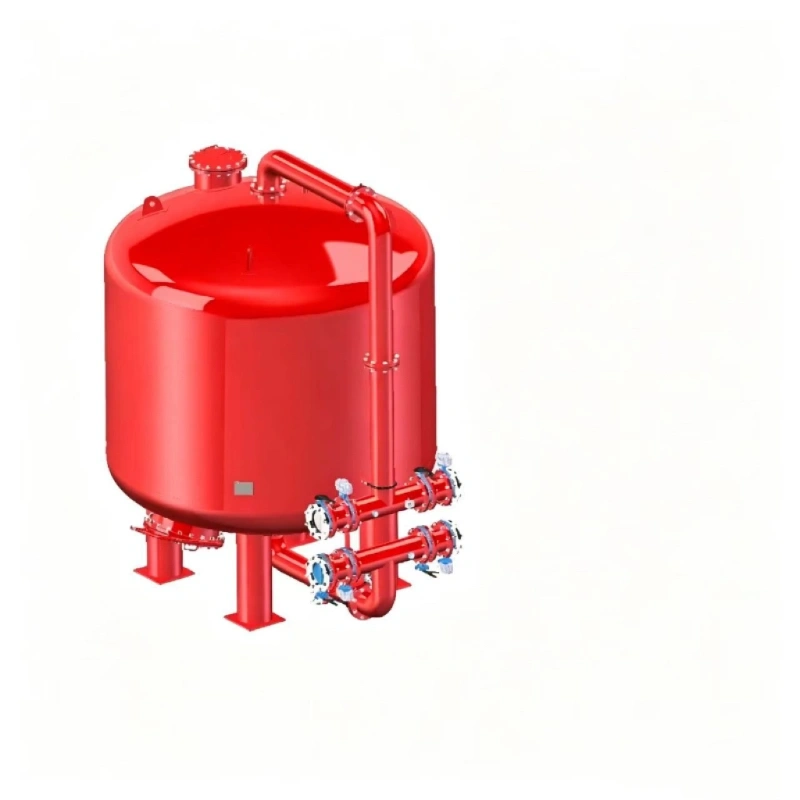

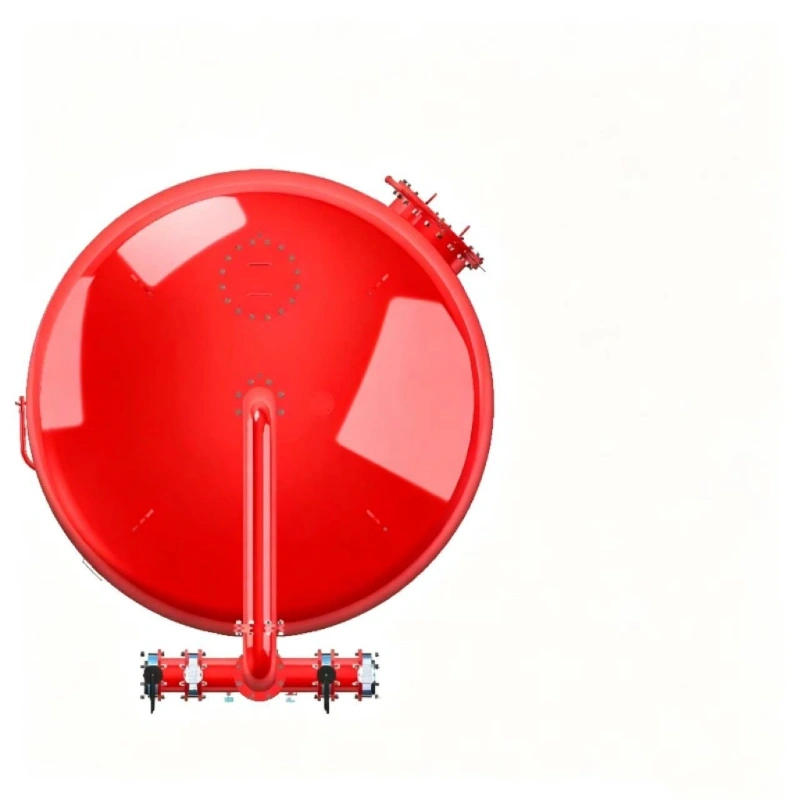

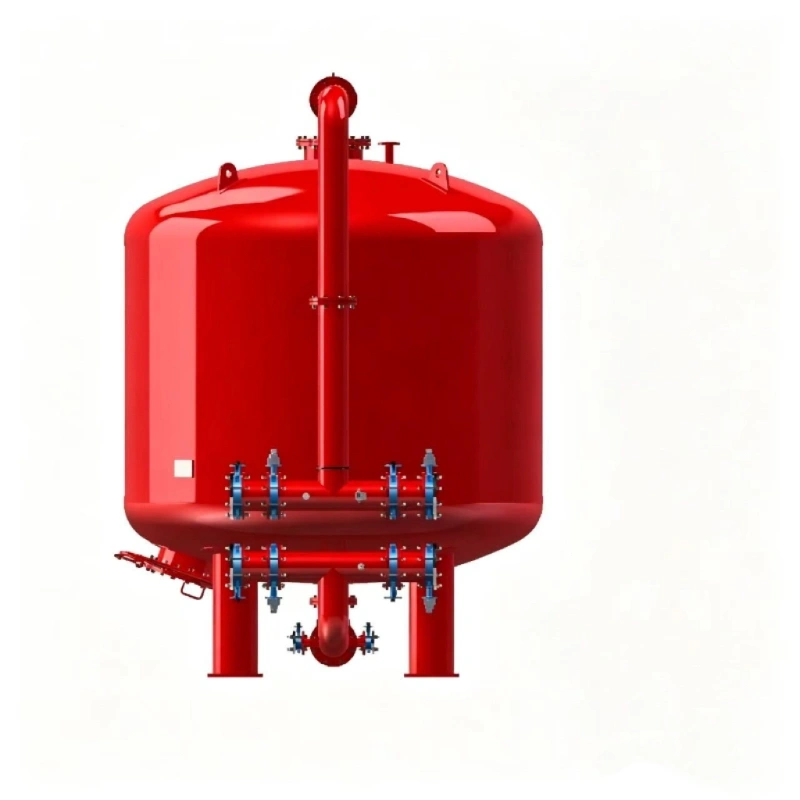

Automatic Multi Media Filtration System Manufacturer
Product Introduction
The Automatic Multi Media Filtration System provides continuous and efficient pretreatment for industrial water treatment processes. Equipped with automatic backwashing functions, the system minimizes maintenance while ensuring consistent filtration performance. It is suitable for industrial facilities requiring reliable water quality and long-term stable operation.
The Automatic Multi Media Filtration System is designed to provide reliable and continuous removal of suspended solids, turbidity, and particulate contaminants from industrial and municipal water supplies. By utilizing multiple filtration media with different particle sizes and densities, the system achieves efficient depth filtration while maintaining low pressure loss and stable water flow.
With automatic backwashing and intelligent control, the system minimizes maintenance requirements and provides dependable long-term performance for a wide variety of industrial water treatment applications.
Operation Guide
System Start-up
Before operation, verify that the filtration media has been properly loaded and all valves are in the correct operating position. Start the feed water pump gradually until the designed operating flow rate is reached.
Normal Filtration
Raw water enters the top of the vessel and passes downward through multiple media layers. Suspended solids are retained within the filter bed while clean water exits through the outlet manifold.
Backwash Process
When differential pressure reaches the preset value or the programmed operating time has elapsed, the system automatically initiates the backwash cycle. Water flows upward through the media bed, removing accumulated contaminants and restoring filtration efficiency.
Return to Service
After backwashing is completed, the system automatically returns to filtration mode without requiring complicated operator intervention.
Maintenance Guide
Daily Inspection
Monitor inlet and outlet pressure, operating flow rate, and backwash frequency to ensure stable system performance.
Filter Media Inspection
Periodically inspect the filtration media for contamination, channeling, or media loss. Replace media when necessary according to operating conditions
Valve and Instrument Maintenance
Regularly inspect automatic valves, pressure gauges, control systems, and piping connections to ensure reliable operation.
Scheduled Maintenance
Follow the recommended maintenance schedule for pumps, actuators, PLC systems, and instrumentation to maximize equipment service life.
Performance Benefits
High Filtration Efficiency
Multi-layer depth filtration effectively removes suspended solids and turbidity while maintaining stable water quality.
Low Pressure Loss
Optimized hydraulic design reduces operating resistance and minimizes pumping energy consumption.
Reduced Maintenance
Automatic backwashing significantly decreases manual cleaning requirements and extends filtration media service life
Reliable Industrial Operation
Heavy-duty construction and high-quality components ensure stable operation under continuous industrial working conditions
Customized Engineering Solutions
Flow capacity, vessel material, filtration media, automation level, and piping arrangements can all be customized according to project specifications
Technical Parameters
Technical Parameters
Model
FDZ80
FDZ88
FDZ96
FDZ104
FDZ112
FDZ120
Tank Diameter (mm)
2000
2200
2400
2600
2800
3000
Inlet/Outlet Pipe Diameter (mm)
DN100
DN125
DN125
DN125
DN150
DN150
Tank Material
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
Tank Anti-corrosion Treatment
Paint Anti-corrosion
Paint Anti-corrosion
Paint Anti-corrosion
Paint Anti-corrosion
Paint Anti-corrosion
Paint Anti-corrosion
Single Unit Filtration Area (m²)
3
3.8
4.5
5.3
6.1
7
Filtration Velocity (m/h)
10-15
10-15
10-15
10-15
10-15
10-15
Single Unit Treatment Capacity (m³/h)
30-45
40-60
45-70
50-80
60-90
70-100
Working Pressure (MPa)
0.2-0.4
0.2-0.4
0.2-0.4
0.2-0.4
0.2-0.4
0.2-0.4
Backwashing Intensity (L/(s·m²))
8-12
8-12
8-12
8-12
8-12
8-12
Single Tank Backwashing Duration (s)
120
180
200
300
300
500
Backwashing Interval (h)
4-8
4-8
4-8
4-8
4-8
4-8
Backwashing Control Differential Pressure (MPa)
0.08
0.08
0.08
0.08
0.08
0.08
Filter Media Type
Quartz Sand + Anthracite
Quartz Sand + Anthracite
Quartz Sand + Anthracite
Quartz Sand + Anthracite
Quartz Sand + Anthracite
Quartz Sand + Anthracite
Tank Net Weight (t)
2.5
2.7
3
3.5
4
4.5
Tank Operating Weight (t)
21
26
32
38
45
51
Note: Some parameters in the table will be appropriately adjusted according to actual needs.
FAQs
What is a multi media filter used for?
A multi media filter is used to remove suspended solids, turbidity, sediment, and impurities from water treatment systems.
Is a multi media filter suitable for RO pretreatment?
Yes. Multi media filters are widely used as pretreatment equipment for reverse osmosis systems to protect RO membranes.
Do you offer customized water treatment solutions?
Yes. We provide customized filtration and water treatment solutions according to flow rate, water quality, pressure, and project requirements.
What industries are your filtration systems suitable for?
Our filtration systems are widely used in industrial water treatment, municipal water supply, cooling water systems, wastewater reuse, seawater desalination, irrigation, and process water applications.
Can your equipment support automatic operation?
Yes. Our systems can be equipped with PLC automatic control, differential pressure monitoring, timer control, and remote communication functions.
