Product Introduction
Suitable for industrial and municipal water treatment applications, efficient removal of suspended solids and turbidity, stable filtration performance, widely used in pretreatment and water recycling systems.
Features

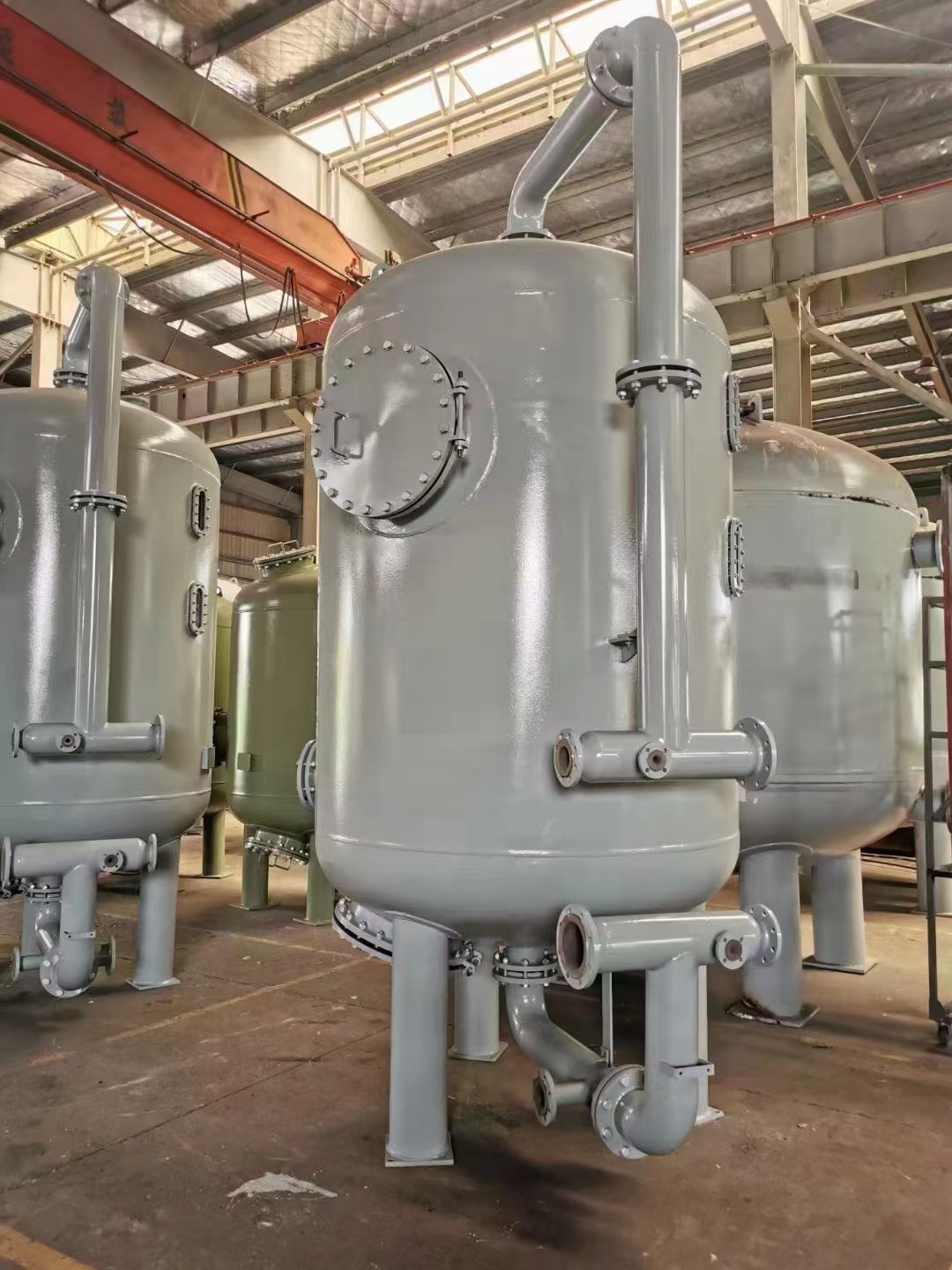

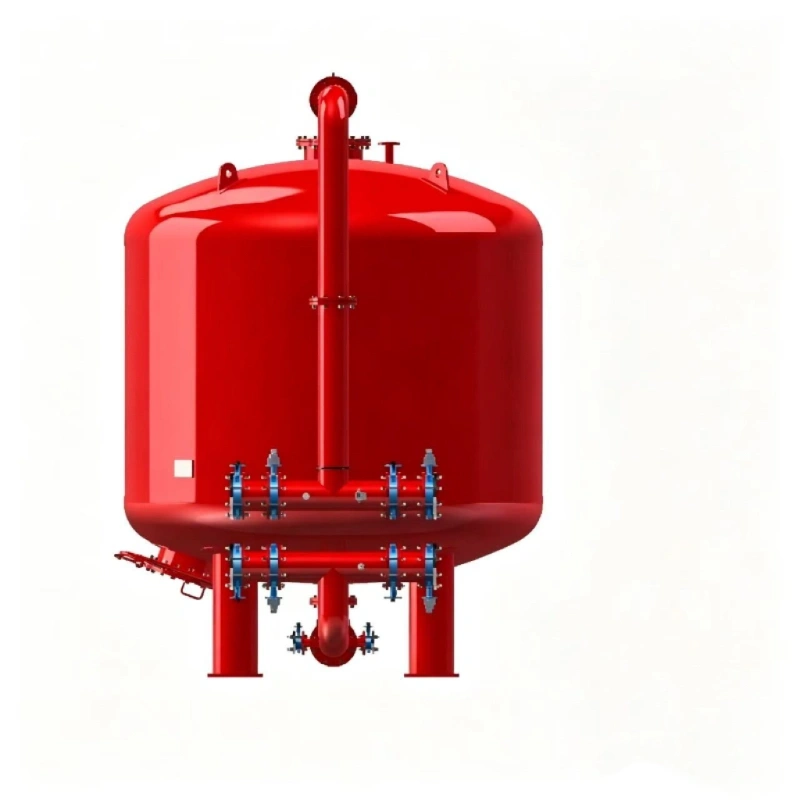

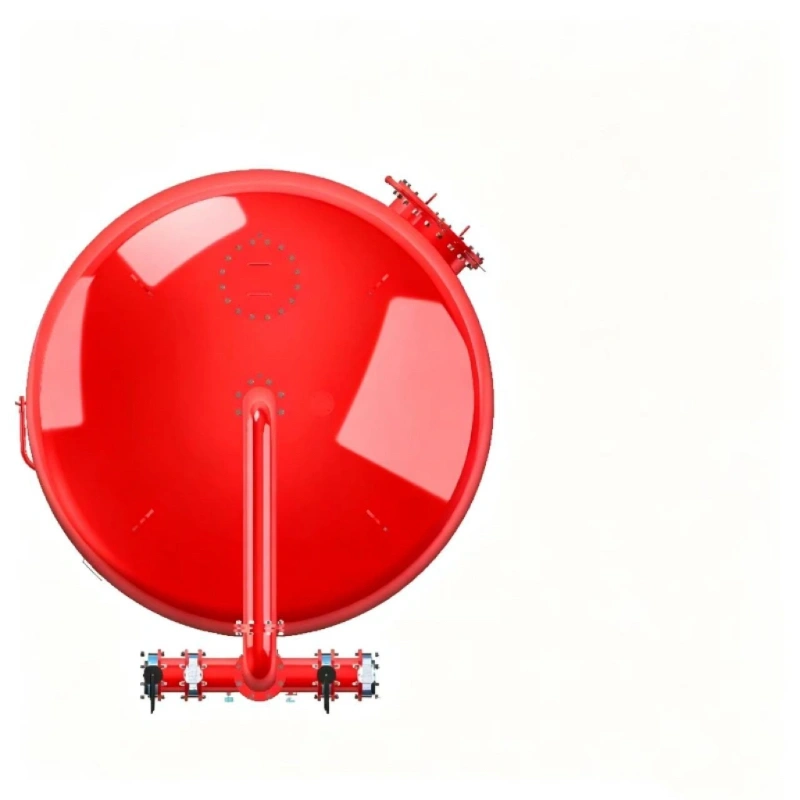

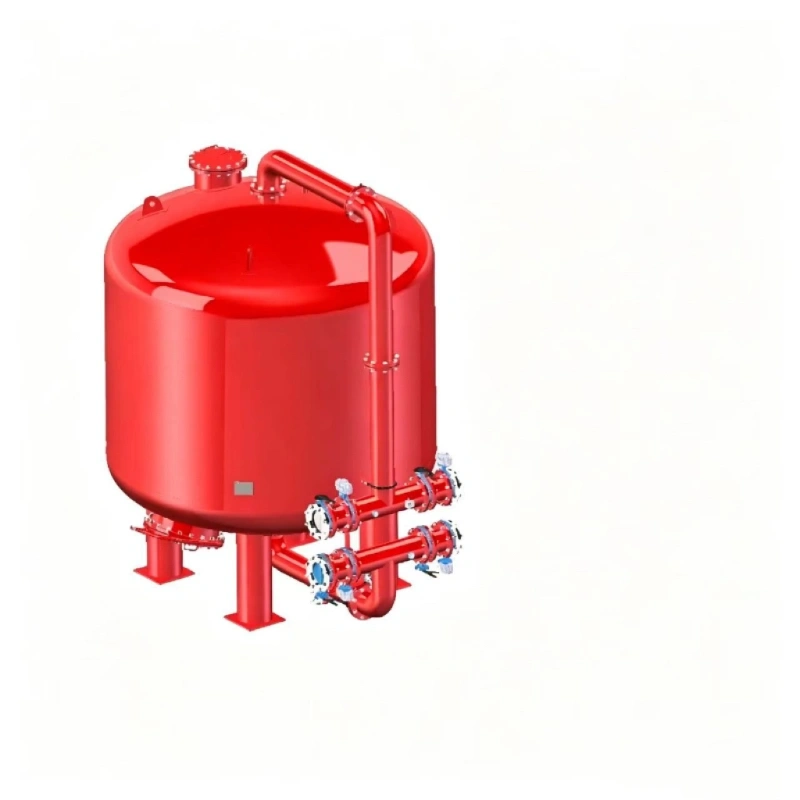

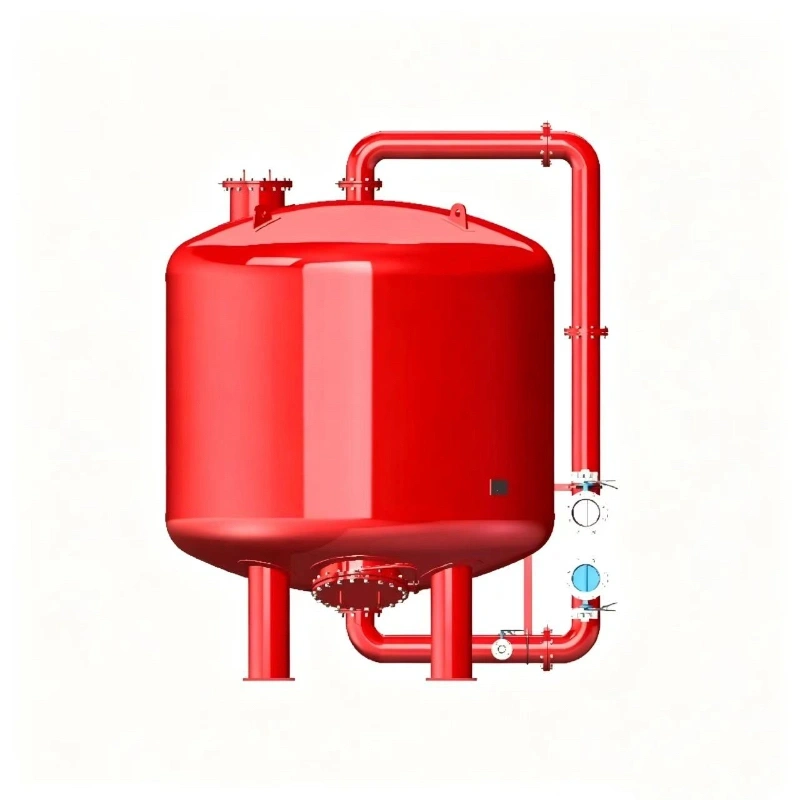

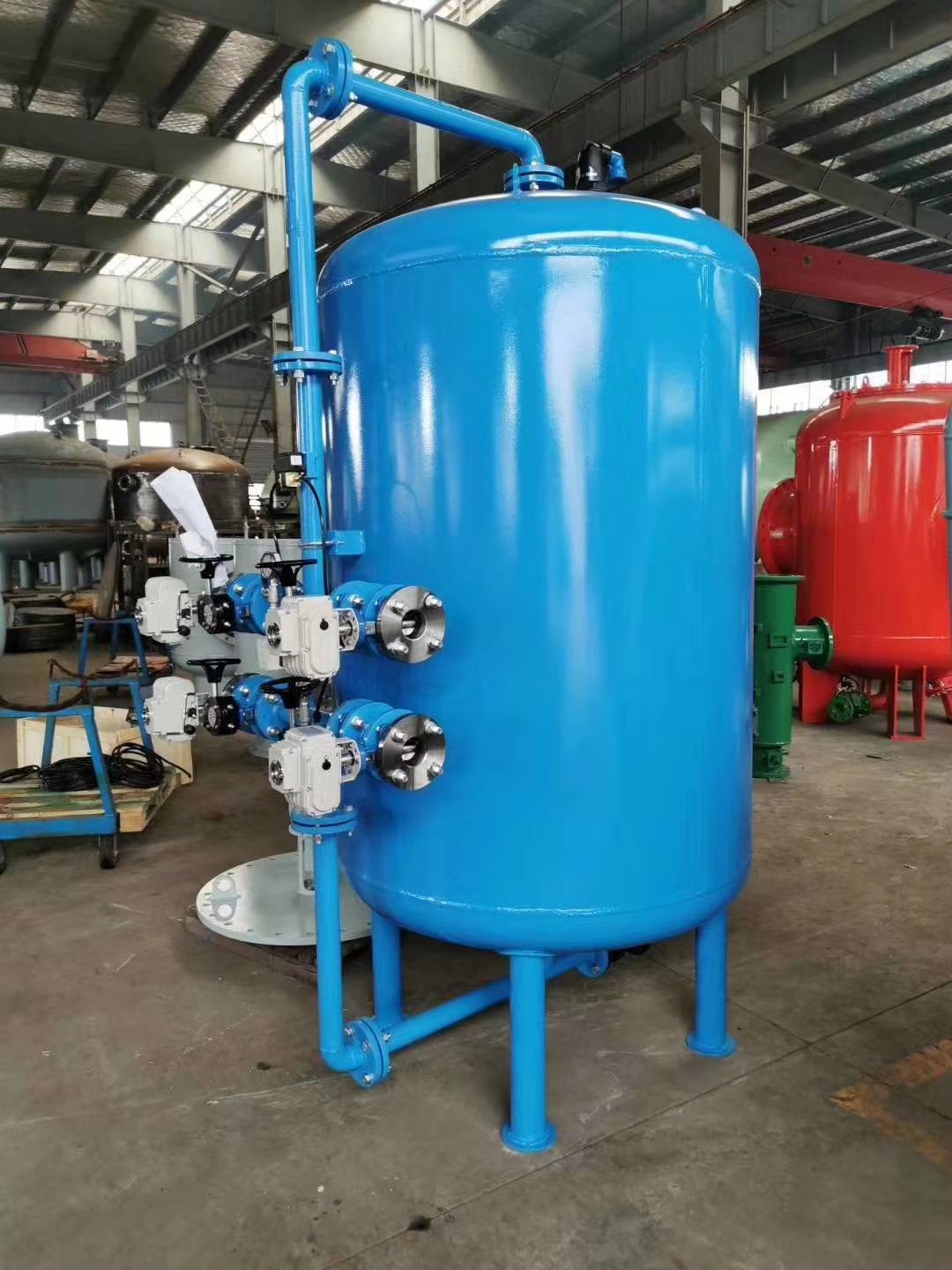

The Industrial Multi Media Water Filter is a highly efficient pressure filtration system designed to improve water quality by removing suspended solids, turbidity, sediment, and other particulate contaminants. Utilizing multiple layers of carefully selected filtration media, the system provides deep-bed filtration with excellent dirt-holding capacity and stable hydraulic performance.
Compared with single-layer filtration systems, the multi-media design distributes contaminants throughout the media bed, resulting in longer filtration cycles, reduced backwashing frequency, and improved filtration efficiency. The system is widely used as pretreatment for reverse osmosis (RO), ultrafiltration (UF), cooling water systems, wastewater reuse, and municipal water treatment.
Designed for continuous industrial operation, the filter is available with manual or automatic backwashing and can be customized to meet different flow capacities, water qualities, and project requirements.
Multi-layer Filtration Technology
Different filtration media such as quartz sand, anthracite, garnet, and activated carbon work together to capture particles of various sizes, improving filtration efficiency and extending service life.
Uniform Water Distribution
Optimized inlet and outlet distributors ensure even water flow through the media bed, reducing channeling and maximizing filtration performance.
Automatic Backwash Function
The system supports automatic or manual backwashing to restore filtration performance quickly while minimizing water consumption and maintenance.
Durable Pressure Vessel
Available in carbon steel with anti-corrosion coating, SS304, or SS316L, the pressure vessel is designed for long-term industrial operation under demanding conditions.
Multi Media Filters effectively protect downstream equipment such as RO membranes and ultrafiltration systems by removing suspended particles before advanced treatment stages.
Long filtration cycles and efficient backwashing reduce water consumption, maintenance frequency, and overall operating expenses.
Each filtration system can be customized according to flow rate, filtration media, operating pressure, vessel size, and control requirements.
Heavy-duty construction and optimized hydraulic design ensure reliable operation with minimal pressure loss throughout the equipment’s service life.
The filter can be integrated into complete water treatment systems including self-cleaning filters, UF systems, RO plants, and chemical dosing units.
The Multi Media Filter is widely used in:
Mining Water Treatment
Reverse Osmosis Pretreatment
Ultrafiltration Pretreatment
Industrial Cooling Water Systems
Municipal Water Treatment Plants
Wastewater Recycling Projects
Seawater Desalination Pretreatment
Power Generation
Steel & Metallurgical Industries
Petrochemical Plants
Food & Beverage Production
Paper & Pulp Industry
| Technical Parameters | ||||||
| Model | FDZ80 | FDZ88 | FDZ96 | FDZ104 | FDZ112 | FDZ120 |
| Tank Diameter (mm) | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 |
| Inlet/Outlet Pipe Diameter (mm) | DN100 | DN125 | DN125 | DN125 | DN150 | DN150 |
| Tank Material | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
| Tank Anti-corrosion Treatment | Paint Anti-corrosion | Paint Anti-corrosion | Paint Anti-corrosion | Paint Anti-corrosion | Paint Anti-corrosion | Paint Anti-corrosion |
| Single Unit Filtration Area (m²) | 3 | 3.8 | 4.5 | 5.3 | 6.1 | 7 |
| Filtration Velocity (m/h) | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 |
| Single Unit Treatment Capacity (m³/h) | 30-45 | 40-60 | 45-70 | 50-80 | 60-90 | 70-100 |
| Working Pressure (MPa) | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
| Backwashing Intensity (L/(s·m²)) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
| Single Tank Backwashing Duration (s) | 120 | 180 | 200 | 300 | 300 | 500 |
| Backwashing Interval (h) | 4-8 | 4-8 | 4-8 | 4-8 | 4-8 | 4-8 |
| Backwashing Control Differential Pressure (MPa) | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 |
| Filter Media Type | Quartz Sand + Anthracite | Quartz Sand + Anthracite | Quartz Sand + Anthracite | Quartz Sand + Anthracite | Quartz Sand + Anthracite | Quartz Sand + Anthracite |
| Tank Net Weight (t) | 2.5 | 2.7 | 3 | 3.5 | 4 | 4.5 |
| Tank Operating Weight (t) | 21 | 26 | 32 | 38 | 45 | 51 |
| Note: Some parameters in the table will be appropriately adjusted according to actual needs. | ||||||
