Water Reuse Ultrafiltration System Supplier

Product Introduction

The Water Reuse Ultrafiltration System is designed for reclaimed water and wastewater recycling applications. By effectively removing suspended solids, bacteria, and colloids, it provides high-quality feed water for advanced treatment processes and sustainable water reuse.

Features

Designed for water reuse
High contaminant removal
Excellent membrane protection
Automatic backwash function
Stable operation
Suitable for recycling systems

Product Introduction

Product Description of Ultrafiltration (UF)

The Industrial Ultrafiltration (UF) System is a highly efficient membrane filtration solution designed for industrial and municipal water treatment applications. Utilizing advanced ultrafiltration membrane technology, the system effectively removes suspended solids, colloids, bacteria, viruses, algae, and other macromolecular contaminants while allowing dissolved minerals to pass through.

As an ideal pretreatment process for reverse osmosis systems, ultrafiltration significantly reduces membrane fouling and extends the service life of downstream equipment. It is also widely used as a standalone water purification system where high-quality filtered water is required.

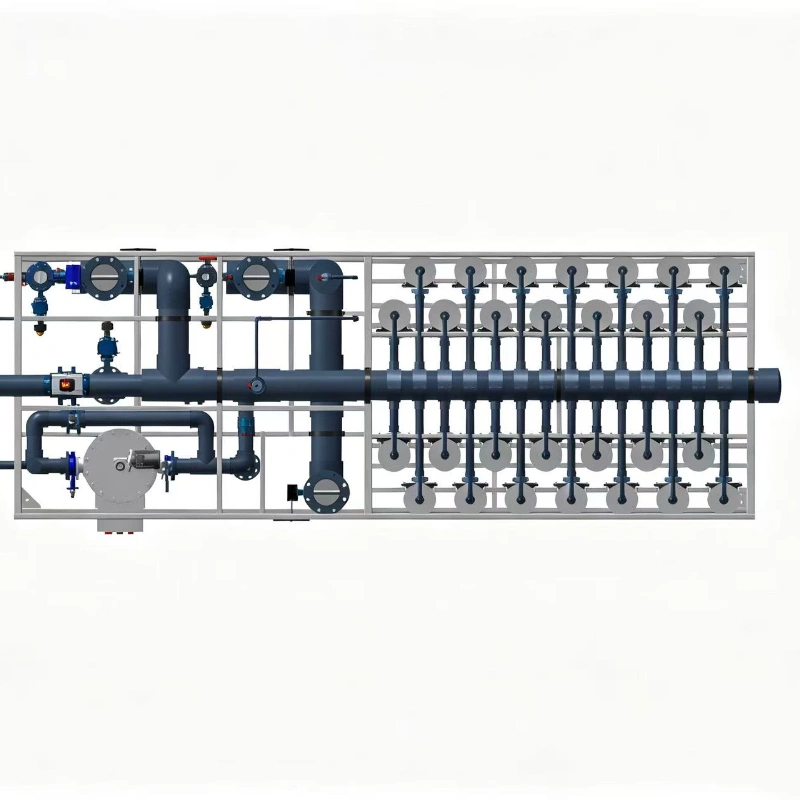

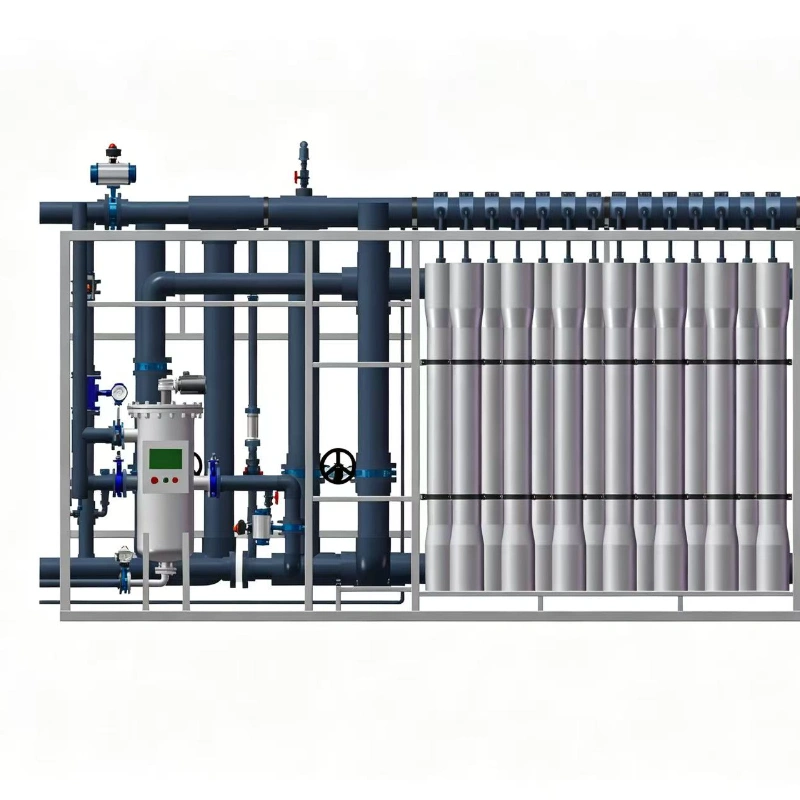

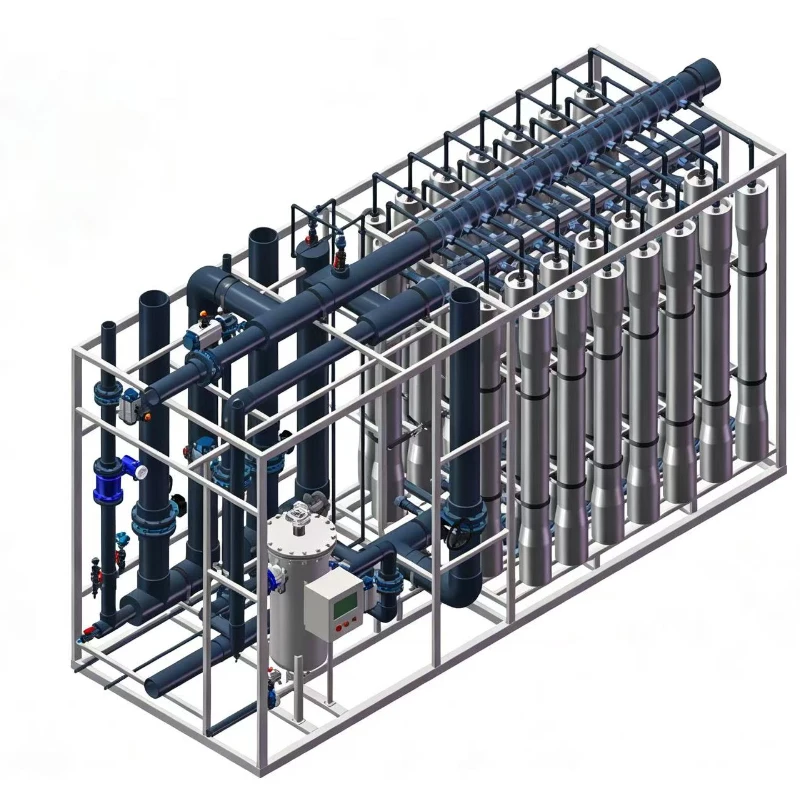

The UF system features fully automatic operation, modular skid-mounted design, and intelligent PLC control, ensuring stable performance, low operating costs, and minimal maintenance. Depending on project requirements, various membrane configurations, materials, and automation options can be customized to suit different water qualities and production capacities.

With reliable operation and excellent filtration performance, the Industrial Ultrafiltration System is widely applied in industrial process water, municipal water treatment, wastewater reuse, seawater desalination pretreatment, and ultrapure water production systems.

Key Advantages

Superior Membrane Filtration

Ultrafiltration membranes effectively remove suspended solids, bacteria, viruses, colloids, and microorganisms while maintaining high water recovery and stable permeate quality.

Ideal RO Pretreatment

The UF system significantly reduces SDI (Silt Density Index) and membrane fouling potential, providing reliable protection for downstream reverse osmosis systems and extending membrane service life.

Fully Automatic Operation

The system supports automatic filtration, backwashing, air scouring, and chemical cleaning through PLC intelligent control, minimizing manual intervention.

Compact Modular Design

The skid-mounted structure simplifies transportation, installation, commissioning, and future system expansion while reducing onsite construction requirements.

Application Areas for Ultrafiltration (UF)

The Industrial Ultrafiltration System is widely used in:

Pharmaceutical Industry

Reverse Osmosis Pretreatment

Municipal Drinking Water Treatment

Industrial Process Water

Wastewater Recycling and Reuse

Surface Water Treatment

Seawater Desalination Pretreatment

Food & Beverage Industry

Technical Specifications

Membrane Material

PVDF Hollow Fiber Membrane
PES Hollow Fiber Membrane (Optional)

Filtration Accuracy

Approximately 0.01–0.1 μm

Water Recovery Rate

Up to 90–95%
Customized according to feed water quality

Operating Mode

Automatic Filtration
Automatic Backwash
Air Scouring
Chemical Enhanced Backwash (CEB)
CIP Cleaning

Control System

PLC Automatic Control
Touch Screen HMI
Remote Monitoring (Optional)

Frame Material

Carbon Steel with Coating
Stainless Steel 304
Stainless Steel 316L

FAQs

What is a Reverse Osmosis (RO) water treatment system?

A Reverse Osmosis (RO) system is a membrane-based water purification technology that removes dissolved salts, heavy metals, bacteria, viruses, and other impurities by applying pressure through semi-permeable membranes. It produces high-quality purified water for industrial and municipal applications.
What contaminants can an RO system remove?

An industrial RO system can effectively remove: Dissolved salts (TDS) Heavy metals Bacteria and viruses Organic matter Nitrates and sulfates Silica (partially) Suspended solids (with proper pretreatment) Typical salt rejection is 95%–99%, depending on membrane type and feed water quality.
What pretreatment is required before an RO system?

Pretreatment protects RO membranes and extends their service life. Typical pretreatment includes: Multimedia Filter Activated Carbon Filter Water Softener (if hardness is high) Cartridge Filter Ultrafiltration (UF) (optional for challenging water sources) The pretreatment process is selected based on the feed water quality.
What industries use RO water treatment systems?

RO systems are widely used in: Power plants Food & beverage Pharmaceutical manufacturing Electronics & semiconductor production Chemical processing Boiler feed water treatment Seawater desalination Wastewater recycling and reuse
