Industrial Ultrafiltration (UF) Water Treatment System Supplier

Product Introduction

Designed for industrial and municipal water treatment, the Ultrafiltration System efficiently removes suspended solids, bacteria, viruses, and colloids while providing stable water quality for pretreatment, water reuse, and industrial process applications.

Features

High Precision Membrane Filtration
Automatic Backwash & CEB Cleaning
Low Energy Consumption
Stable Water Quality
Easy Operation & Maintenance
Modular & Customizable Design

Product Introduction

Product Description of Ultrafiltration (UF)

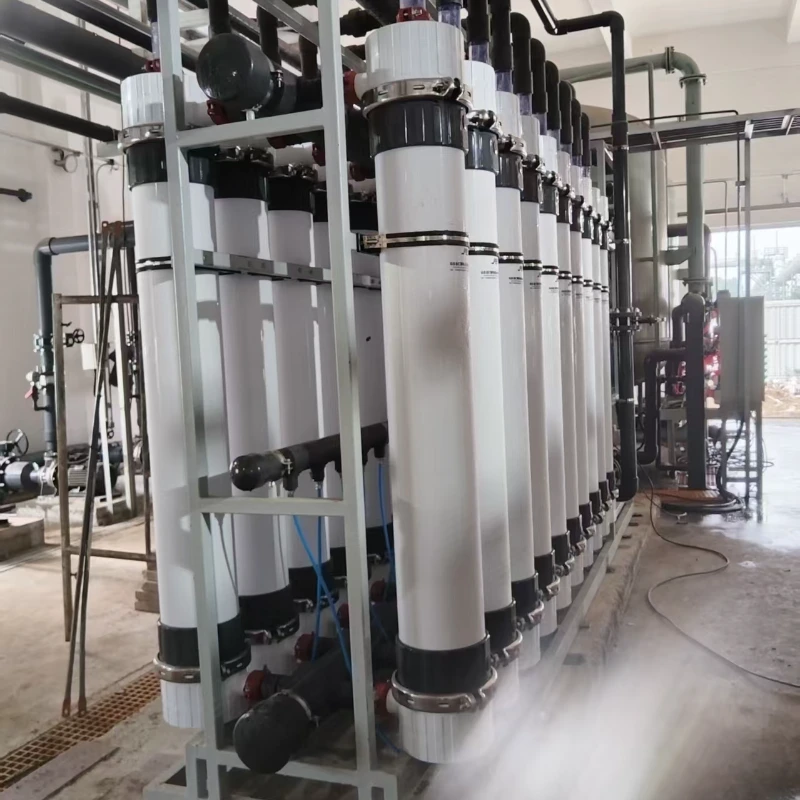

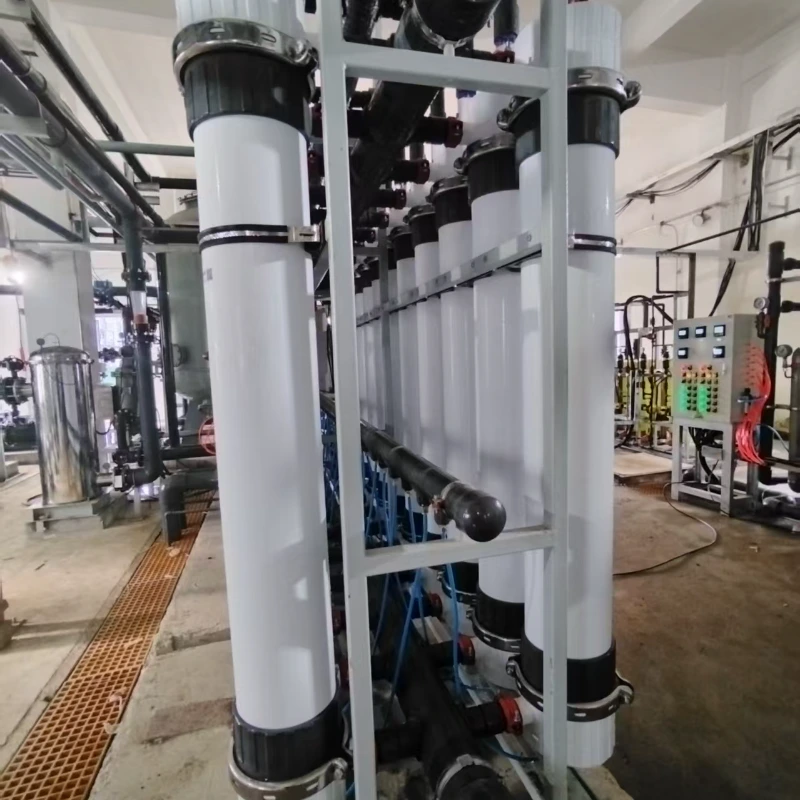

The Ultrafiltration (UF) System is a high-performance membrane filtration solution designed for industrial and municipal water treatment applications. Utilizing hollow fiber ultrafiltration membranes with pore sizes ranging from 0.01 to 0.1 μm, the system efficiently removes suspended solids, colloids, bacteria, viruses, algae, and macromolecular organic matter while allowing dissolved minerals to pass through.

The filtration process operates under low pressure, providing reliable water purification with high recovery rates and stable permeate quality. Combined with automatic backwashing and chemical enhanced cleaning (CEB) functions, the system ensures long-term membrane performance, reduced fouling, and low operating costs.

The Ultrafiltration System is widely used as a pretreatment process for reverse osmosis (RO), seawater desalination, reclaimed water reuse, industrial process water, and municipal water treatment.

Features of Ultrafiltration (UF)

1. High-Precision Membrane Filtration

Produces consistently high-quality filtered water

Membrane filtration accuracy up to 0.01 μm

Effectively removes suspended solids, bacteria, viruses, colloids, and algae

2. Stable and Reliable Operation

Suitable for continuous industrial operation

Low-pressure operation with high water recovery

Stable permeate quality under varying water conditions

3. Automatic Membrane Cleaning

Extends membrane service life and minimizes fouling

Automatic backwash function

Optional Chemical Enhanced Backwash (CEB)

Optional Clean-In-Place (CIP) system

4. Energy-Efficient Design

Low operating pressure and energy consumption
Optimized hydraulic distribution
Reduced operating and maintenance costs

5. Flexible System Configuration

PLC automatic control system available

Inside-out or outside-in membrane modules available

PVDF hollow fiber membrane options

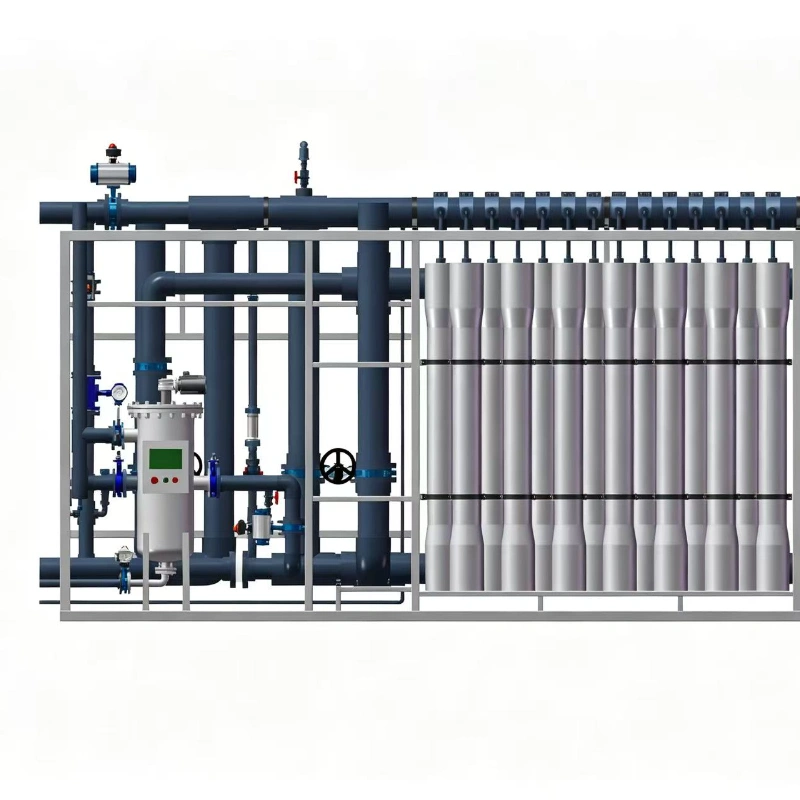

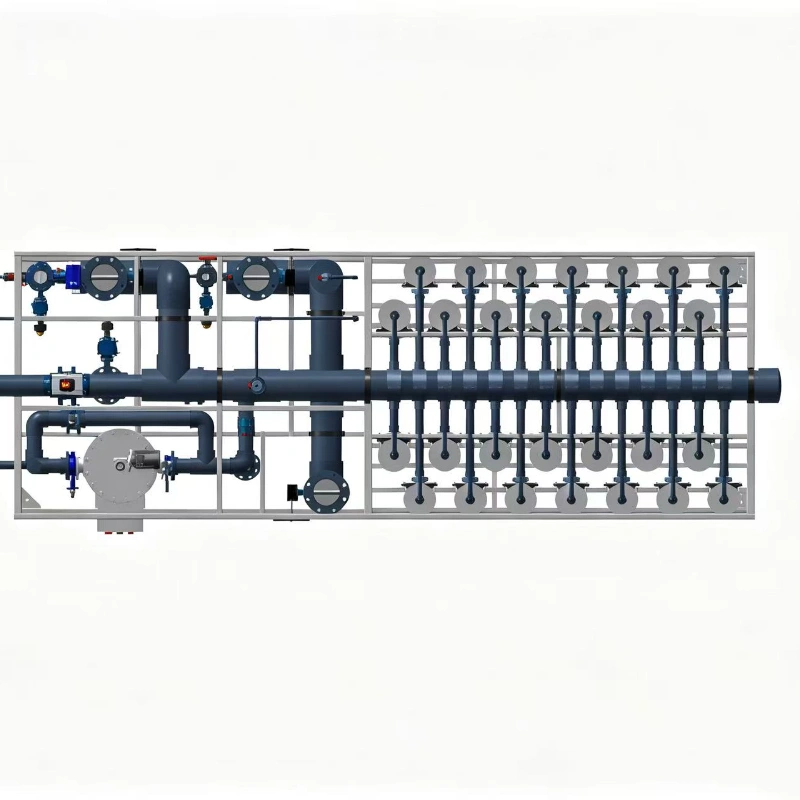

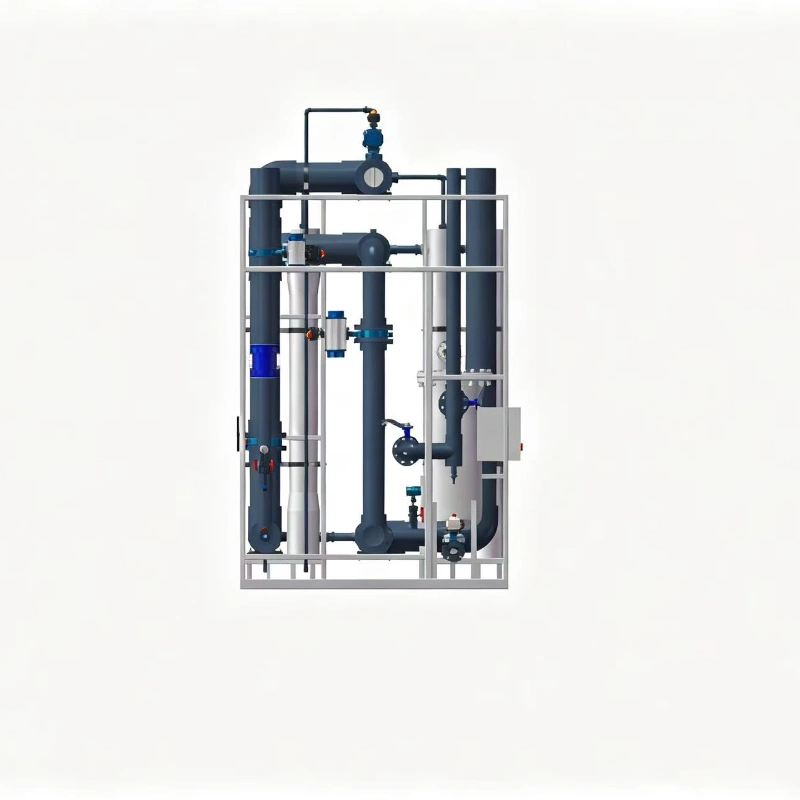

Skid-mounted modular design for easy installation

6. Customized Solutions

Available as complete turnkey UF systems

Flow capacity customized according to project requirements

Flexible membrane quantity and arrangement

Compatible with RO, EDI, desalination, and water reuse systems

Application Areas for Ultrafiltration (UF)

Industrial circulating cooling water systems

RO pretreatment systems

Municipal water treatment plants

Wastewater recycling and reuse systems

Seawater desalination pretreatment

Irrigation and agricultural water filtration

Power plant and utility water systems

Steel, petrochemical, and chemical industries

Paper making and textile industries

Industrial process water treatment

After-Sales Service

1.Professional Technical Support

Professional technical consultation, system selection, and installation guidance are provided throughout the project process.

2.Warranty Service

The equipment comes with a one-year warranty. During the warranty period, free technical support and troubleshooting assistance are provided.

3.Maintenance and Spare Parts Support

Lifetime maintenance service is available. Spare parts and replacement filter elements can be supplied continuously according to customer requirements.

4.Remote Support

Remote technical assistance for commissioning, operation, and troubleshooting is available via online communication platforms.

FAQs

What is a Reverse Osmosis (RO) water treatment system?

A Reverse Osmosis (RO) system is a membrane-based water purification technology that removes dissolved salts, heavy metals, bacteria, viruses, and other impurities by applying pressure through semi-permeable membranes. It produces high-quality purified water for industrial and municipal applications.
What contaminants can an RO system remove?

An industrial RO system can effectively remove: Dissolved salts (TDS) Heavy metals Bacteria and viruses Organic matter Nitrates and sulfates Silica (partially) Suspended solids (with proper pretreatment) Typical salt rejection is 95%–99%, depending on membrane type and feed water quality.
What pretreatment is required before an RO system?

Pretreatment protects RO membranes and extends their service life. Typical pretreatment includes: Multimedia Filter Activated Carbon Filter Water Softener (if hardness is high) Cartridge Filter Ultrafiltration (UF) (optional for challenging water sources) The pretreatment process is selected based on the feed water quality.
What industries use RO water treatment systems?

RO systems are widely used in: Power plants Food & beverage Pharmaceutical manufacturing Electronics & semiconductor production Chemical processing Boiler feed water treatment Seawater desalination Wastewater recycling and reuse
