Product Description of Reverse Osmosis

The Industrial Reverse Osmosis (RO) Water Treatment System is a high-efficiency membrane filtration solution designed to produce high-quality purified water for industrial and municipal applications. Utilizing advanced reverse osmosis membrane technology, the system effectively removes dissolved salts, hardness, heavy metals, bacteria, viruses, organic substances, and other impurities from raw water.

The RO system operates by applying pressure to force water through semi-permeable membranes, allowing only water molecules to pass while rejecting most dissolved contaminants. This process produces stable, high-purity water suitable for boiler feed water, industrial process water, drinking water production, pharmaceutical manufacturing, food processing, and many other applications.

Our reverse osmosis systems are available in standard and customized configurations with capacities ranging from small skid-mounted units to large-scale industrial plants. Combined with intelligent PLC control, automatic monitoring, and energy-efficient operation, the system delivers reliable performance while minimizing operating costs.

Designed for long-term continuous operation, the Industrial RO System can be integrated with multimedia filters, ultrafiltration systems, EDI units, and other water treatment equipment to provide complete

Key Advantages

High Water Purification Efficiency

The reverse osmosis membrane removes up to 99% of dissolved salts, suspended solids, bacteria, viruses, and organic contaminants, producing consistently high-quality water for industrial applications.

Energy-efficient Operation

The system adopts optimized hydraulic design, high-efficiency pumps, and energy-saving membranes to reduce operating costs while maintaining stable water production.

Intelligent Automatic Control

PLC control enables automatic startup, shutdown, flushing, pressure monitoring, conductivity monitoring, and fault alarms, reducing manual operation and improving system reliability.

Flexible Modular Design

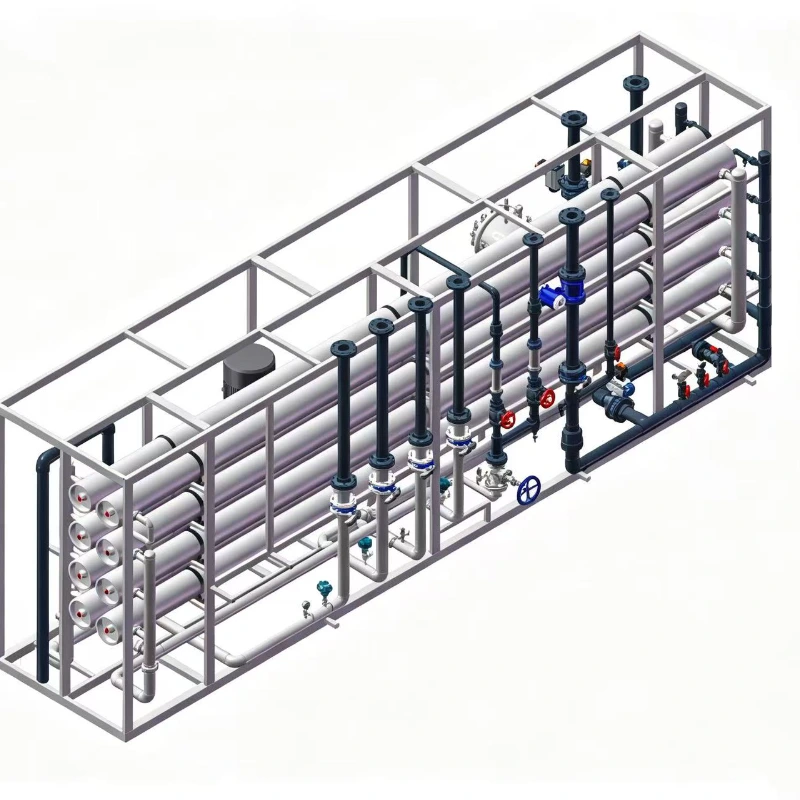

The RO system can be customized according to feed water quality, required permeate capacity, recovery rate, and installation space. Modular skid-mounted construction allows easy transportation and installation.

Reliable Long-term Performance

Premium membranes, high-quality pressure vessels, and durable piping materials ensure stable operation and long equipment service life under demanding industrial conditions.

Application Areas for Reverse Osmosis

Industrial Reverse Osmosis Systems are widely used in:

Ultrapure Water Systems

Boiler Feed Water Systems

Industrial Process Water

Electronics Manufacturing

Pharmaceutical Industry

Food & Beverage Production

Chemical Industry

Power Plants

Steel & Metallurgy

Municipal Drinking Water

Seawater Desalination Pretreatment

Wastewater Reuse

Technical Specifications

Membrane Type

• Polyamide Thin Film Composite (TFC)
• Low Energy Membrane
• Seawater RO Membrane (Optional)

Water Production Capacity

Customized from 0.5 m³/h to 500 m³/h

Salt Rejection Rate

• Up to 99%

Recovery Rate

• Typically 50–75%
• Customized according to water quality

Operating Pressure

• According to feed water conditions

Control System

• PLC Automatic Control
• Touch Screen HMI
• Remote Monitoring (Optional)

Frame Material

Stainless Steel 316L

Carbon Steel with Coating

Stainless Steel 304
