Automatic Self-cleaning Filter System Manufacturer
Product Introduction
The Automatic Self-cleaning Filter System provides efficient particle removal through automatic backwashing and intelligent pressure monitoring. Designed for industrial water treatment applications, it minimizes manual intervention while maintaining stable filtration performance and protecting pumps, pipelines, and heat exchangers from contamination.
Product Description of Self-cleaning Filter System

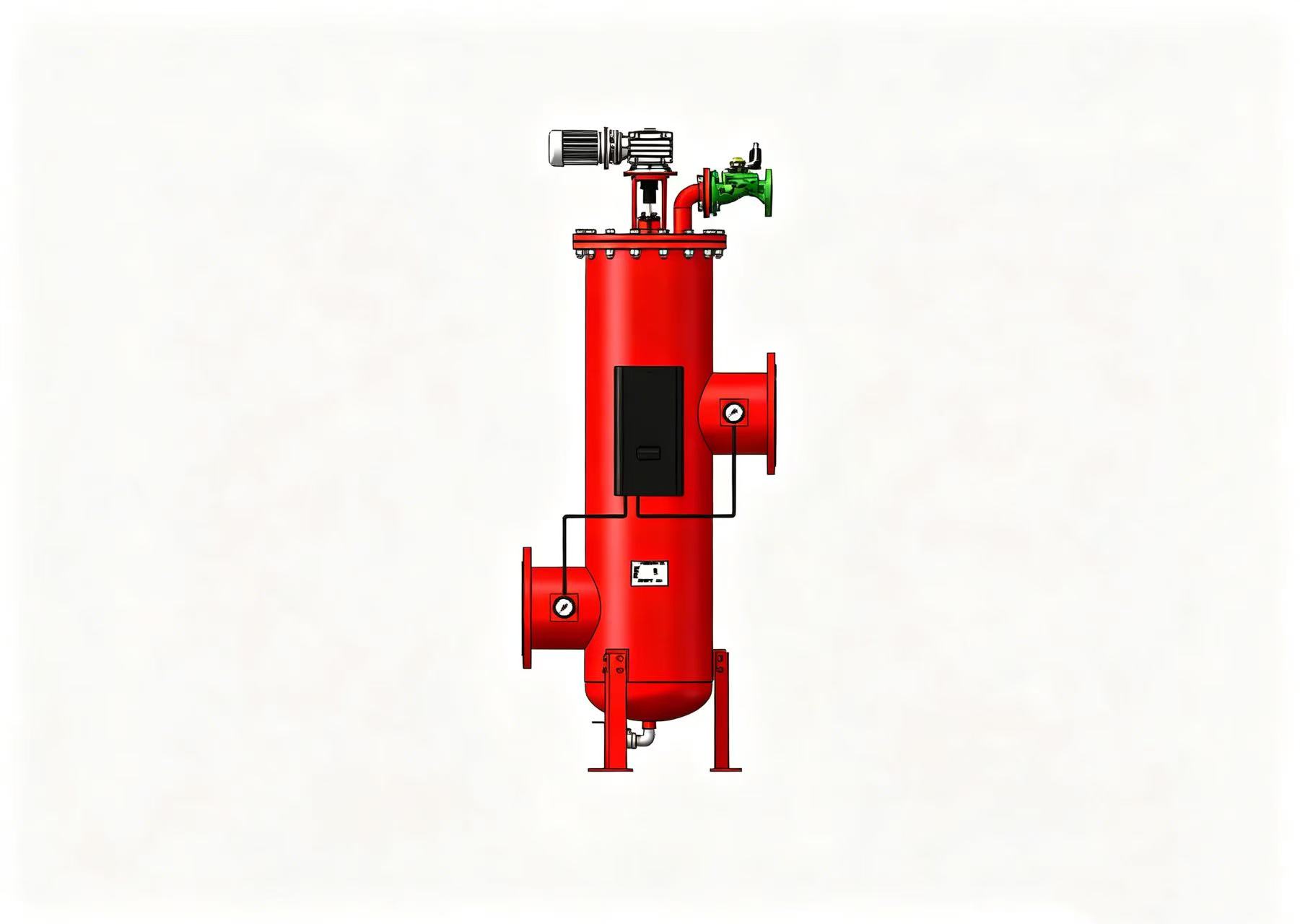

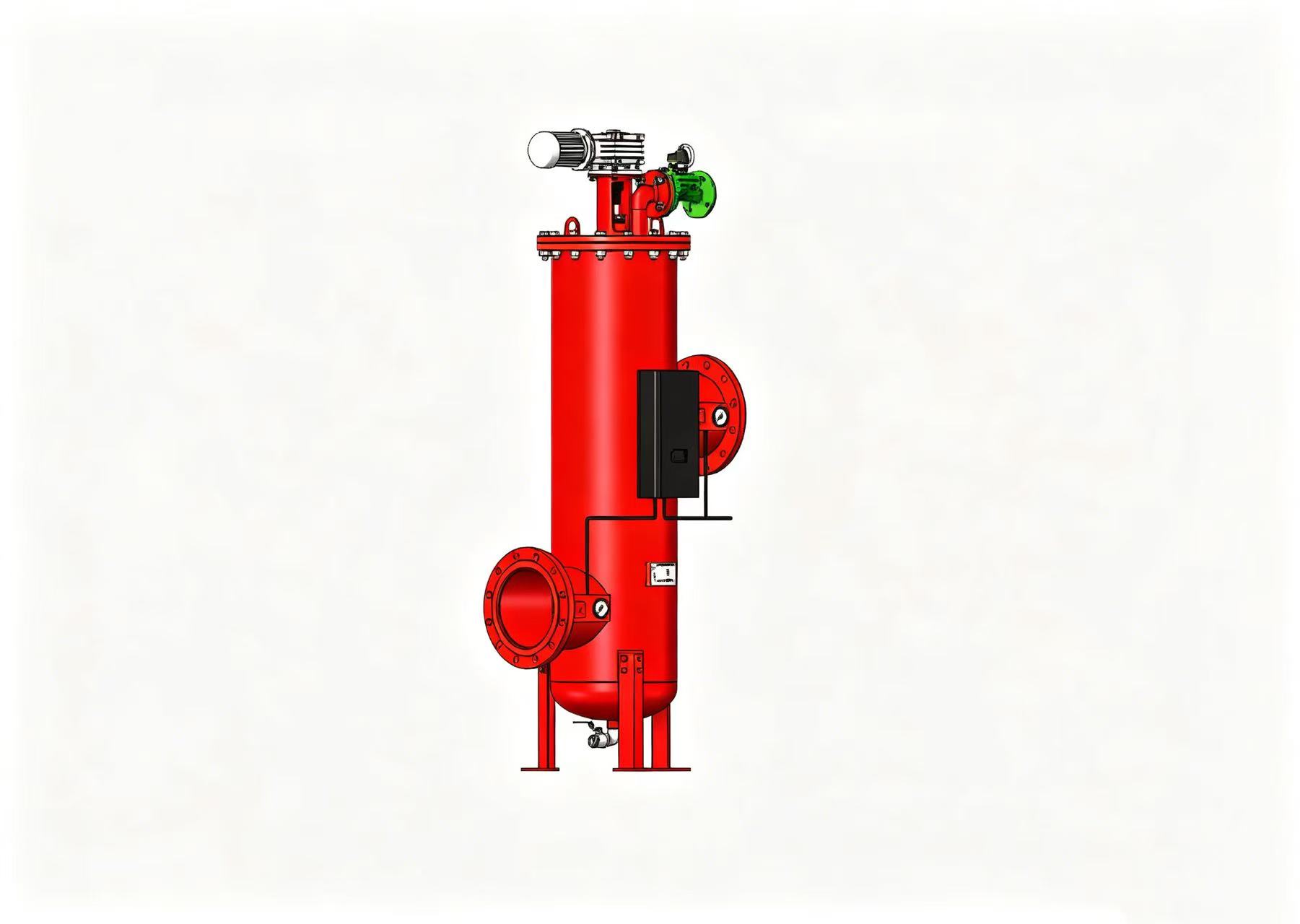

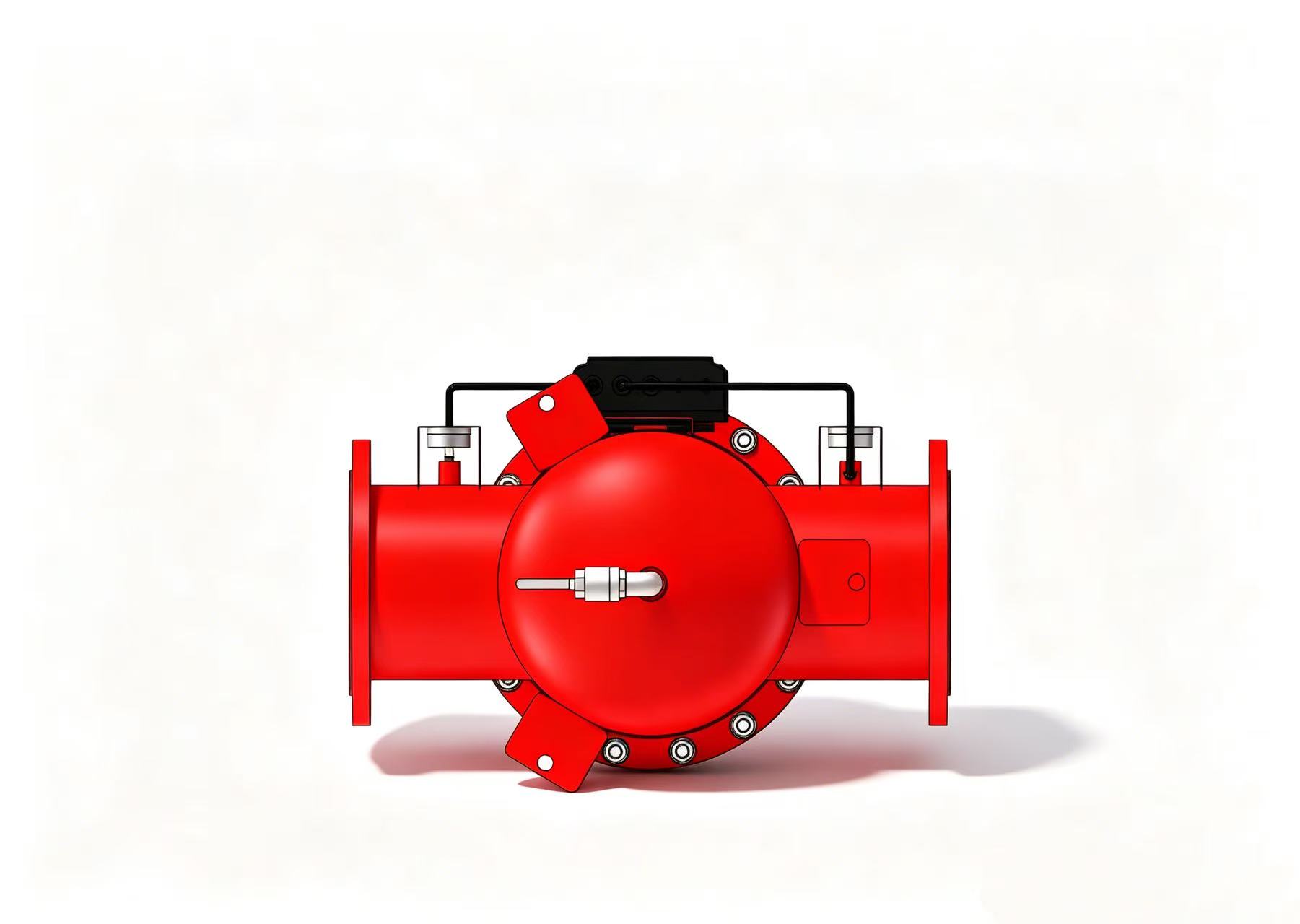

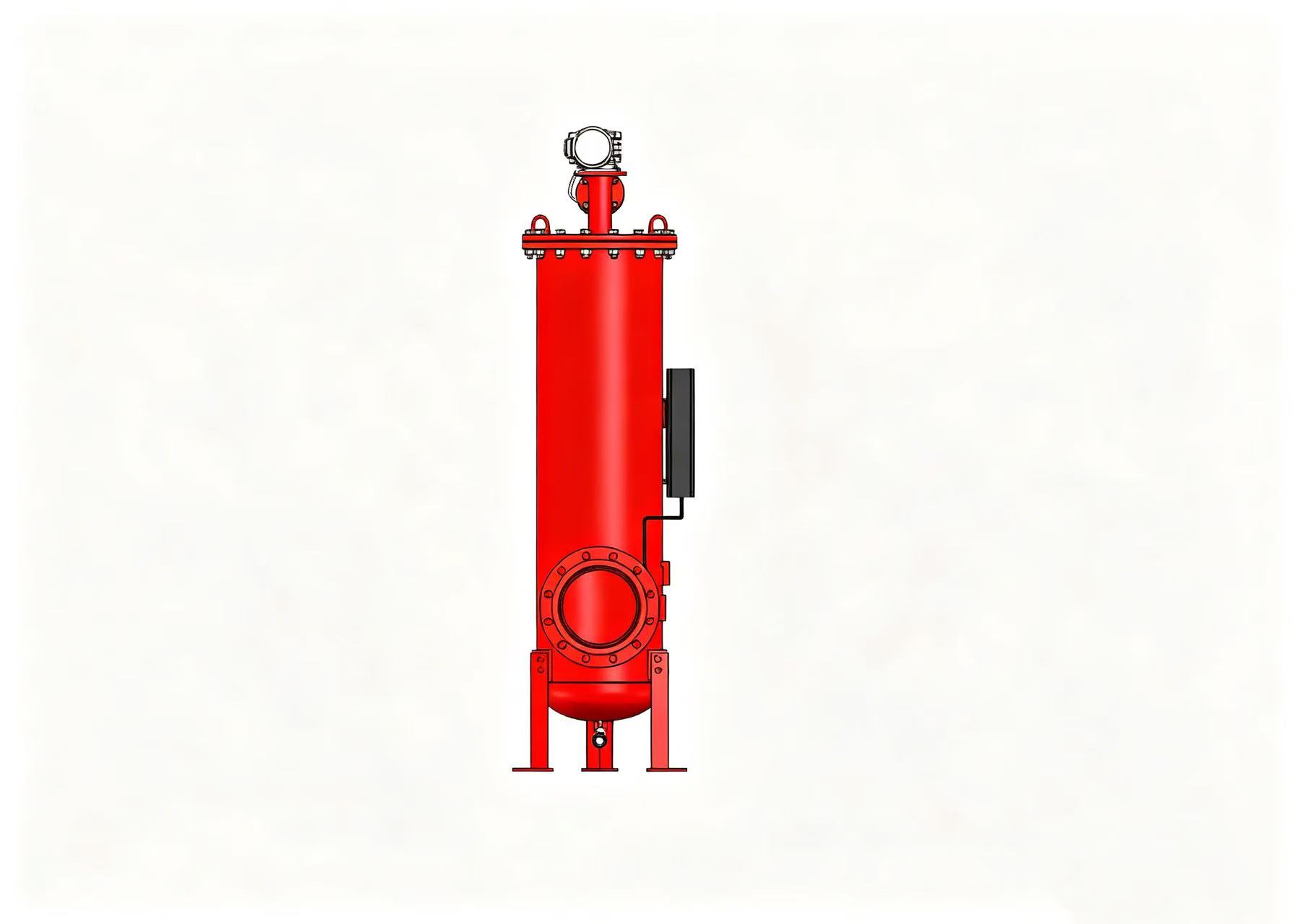

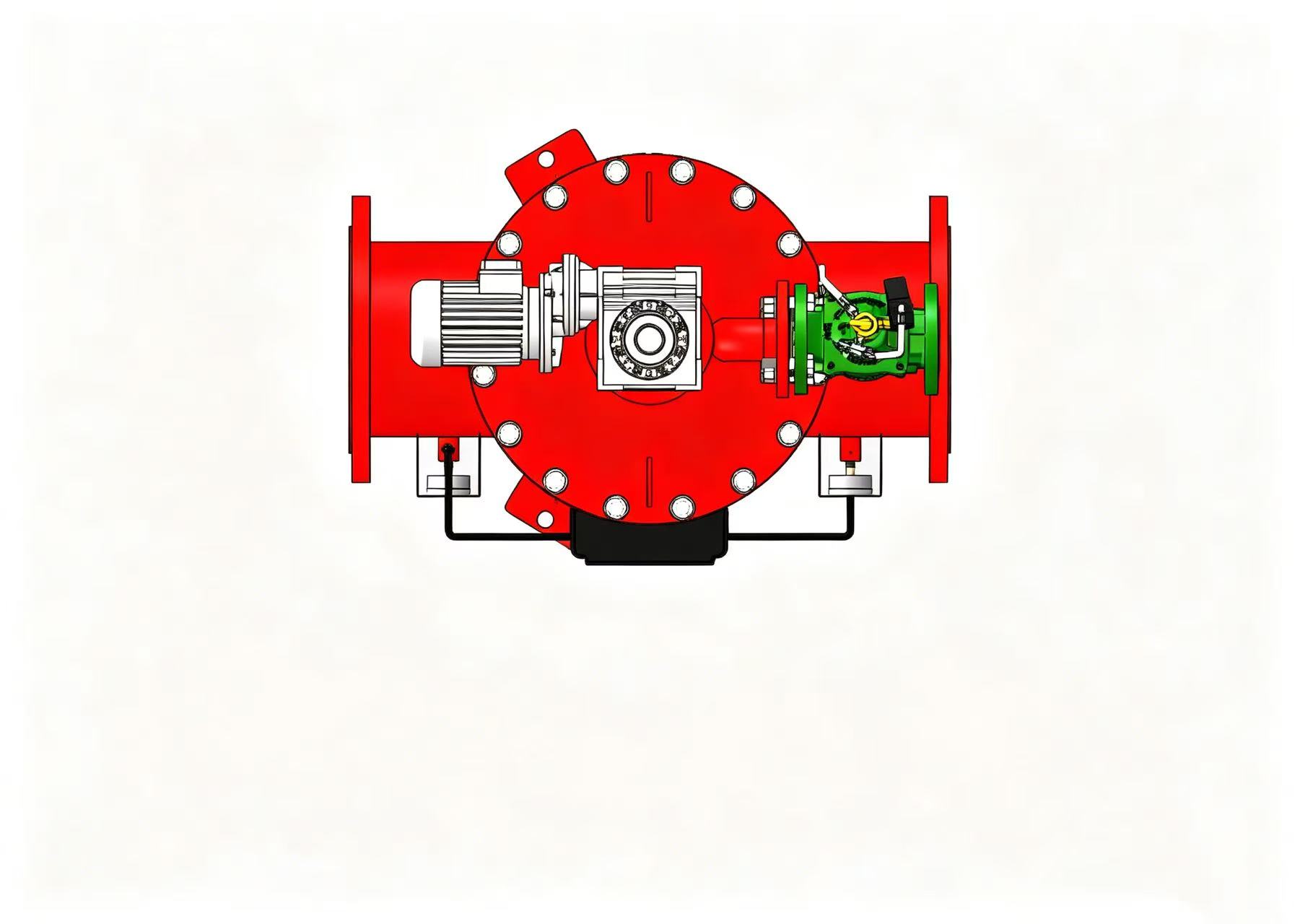

The Automatic Self Cleaning Filter is an advanced filtration system designed for continuous removal of suspended solids, particles, and impurities from water without interrupting the filtration process.
Unlike conventional filters that require frequent manual cleaning or filter element replacement, the self cleaning filter adopts an automatic backwashing mechanism to maintain stable filtration performance and reduce operation and maintenance costs.
With a compact structure, high filtration efficiency, and fully automatic operation, it is widely used in industrial water treatment, municipal water supply, irrigation systems, cooling water circulation, process water filtration, and other applications requiring reliable and continuous filtration.
Performance Features
1. Continuous Filtration Without Shutdown
The self cleaning filter can perform automatic cleaning while maintaining normal water flow, minimizing downtime and ensuring uninterrupted operation.
2. High Filtration Efficiency
The precision-designed filter screen effectively removes suspended solids, sediment, and mechanical impurities, with filtration ratings available according to different application requirements.
3. Automatic Operation and Intelligent Control
Equipped with differential pressure sensors, automatic valves, and intelligent control systems, the filter can automatically detect contamination levels and initiate cleaning when required.
4. Reduced Operation and Maintenance Costs
The automatic cleaning design eliminates frequent manual cleaning and reduces labor requirements, consumable replacement, and maintenance costs.
5. Compact and Reliable Structure
The integrated design provides a small installation footprint, simple operation, and long service life under various industrial working conditions.
6. Flexible Configuration Options
Different materials, filtration ratings, control methods, and connection types can be selected according to water quality, flow rate, and application requirements.
Installation & Maintenance
Installation Requirements
Install the filter according to the designed flow direction indicated on the equipment.
Ensure sufficient space around the equipment for operation and maintenance.
Install pressure gauges or pressure sensors at the inlet and outlet for monitoring pressure difference.
Provide a suitable drainage connection for wastewater discharge during cleaning.
Select appropriate filter materials based on water characteristics and operating conditions.
Maintenance Guide
Although the self cleaning filter requires minimal maintenance, regular inspection is recommended:
Check the differential pressure value and cleaning frequency.
Inspect valves, sensors, and control systems periodically.
Ensure the drain pipeline remains unobstructed.
Clean or inspect the filter screen when abnormal pressure loss occurs.
Check electrical connections for automatic control systems.
Proper operation and regular inspection can significantly extend equipment service life and maintain stable filtration performance.
After-Sales Service
1.Professional Technical Support
Professional technical consultation, system selection, and installation guidance are provided throughout the project process.
2.Warranty Service
The equipment comes with a one-year warranty. During the warranty period, free technical support and troubleshooting assistance are provided.
3.Maintenance and Spare Parts Support
Lifetime maintenance service is available. Spare parts and replacement filter elements can be supplied continuously according to customer requirements.
4.Remote Support
Remote technical assistance for commissioning, operation, and troubleshooting is available via online communication platforms.
Technical Parameters
Technical Parameters
Parameter
Specification
Single unit flow rate
25~2800t/h, larger flow rate can be achieved by multiple units in parallel
Minimum working pressure
0.2MPa
Maximum working pressure
0.6MPa/1.0MPa/1.6MPa/2.5MPa/4.0MPa
Maximum working temperature
70°C
Filtration precision
80-5000 microns
Control mode
Differential pressure, time and manual
Cleaning time
60 seconds
Cleaning pressure drop
0.01~0.03MPa
Control voltage
AC 220V
Rated operating voltage
Three-phase, 220V, 380V, 50HZ
Specification Model and Parameters
Model
Pipe Diameter (mm)
Filtration Flow Rate (t/h)
Filtration Area (cm2)
Drain Valve DN (mm)
Water Consumption per Cleaning (Kg)
Motor Power (KW)
Weight (Kg)
DST12
DN300
650
9500
DN50
200
0.37
320
DST14
DN350
900
12000
DN50
350
0.55
480
DST16
DN400
1200
12000
DN50
350
0.55
520
DST18
DN450
1500
15000
DN65
350
0.75
835
DST20
DN500
2000
15000
DN65
350
0.75
900
DST24
DN600
2800
18000
DN65
350
0.75
1080
FAQs
What is a self-cleaning filter used for?
A self-cleaning filter is used to automatically remove suspended solids and impurities from water without interrupting system operation.
How does the automatic cleaning system work?
The filter automatically initiates backwashing through differential pressure or timer control while maintaining continuous filtration operation.
Do you offer customized water treatment solutions?
Yes. We provide customized filtration and water treatment solutions according to flow rate, water quality, pressure, and project requirements.
What industries are your filtration systems suitable for?
Our filtration systems are widely used in industrial water treatment, municipal water supply, cooling water systems, wastewater reuse, seawater desalination, irrigation, and process water applications.
Do you provide overseas technical support?
Yes. We provide remote technical support, installation guidance, commissioning assistance, and after-sales service for overseas projects.
