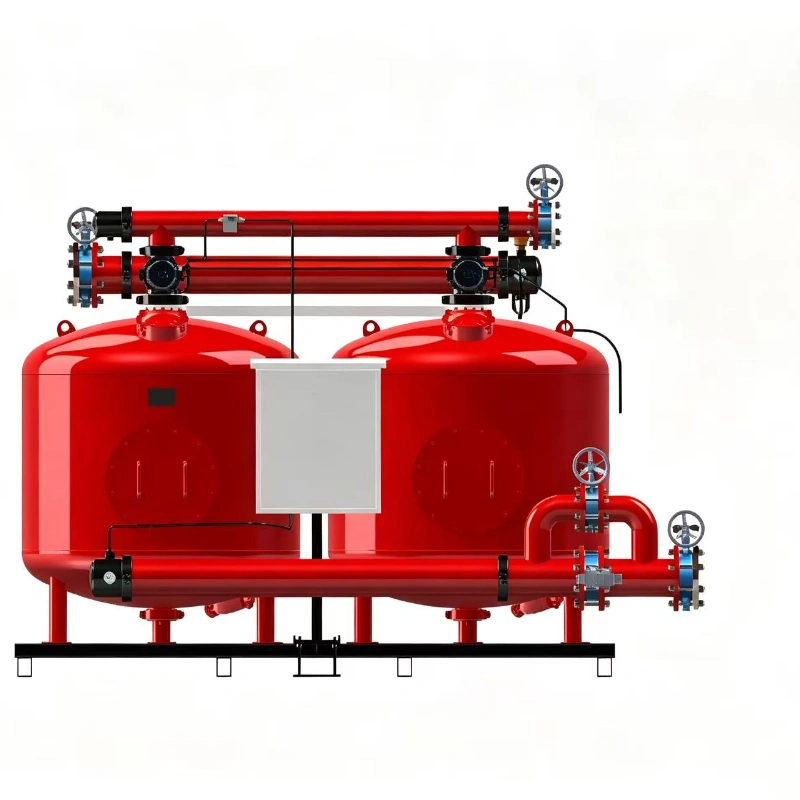

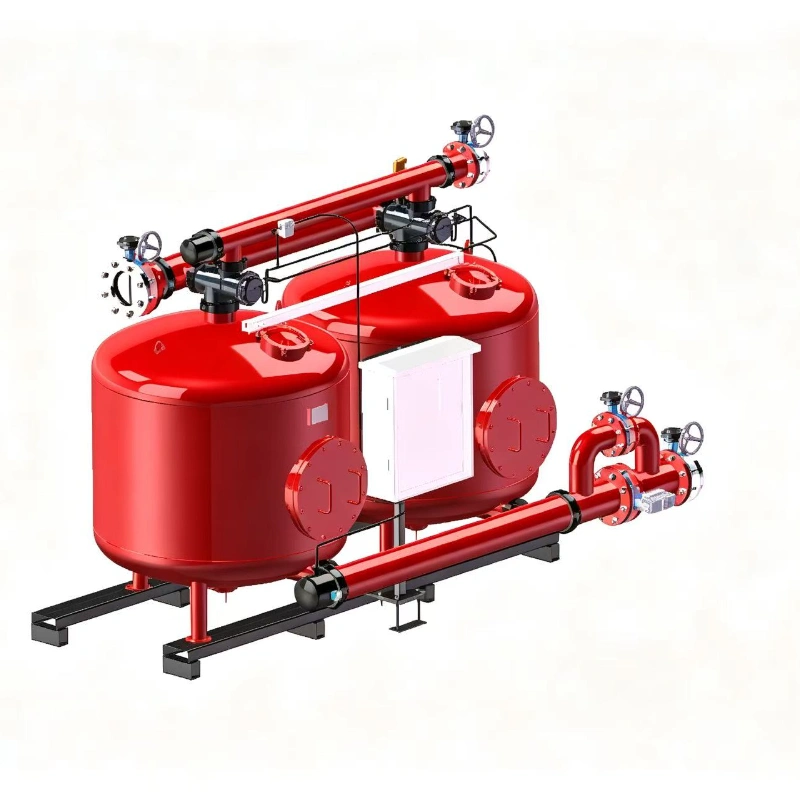

The High Flow Shallow Media Filter is engineered to handle large water volumes with high filtration efficiency. Multiple filter cells operate simultaneously to ensure stable water quality while reducing pressure loss and maximizing operational reliability. It is suitable for industrial cooling water, utility water, and pretreatment applications.
The Shallow Sand Filter is an efficient automatic filtration system designed for industrial, municipal, and irrigation water treatment applications. Utilizing a shallow bed of high-quality filtration media, the system provides excellent removal of suspended solids, algae, and fine particles while maintaining low pressure loss and high filtration efficiency.
Unlike conventional deep-bed media filters, the shallow media design enables rapid filtration, shorter backwash cycles, lower backwash water consumption, and more uniform media cleaning. Multiple filtration units can be operated in parallel to accommodate various flow capacities while ensuring continuous and reliable operation.
Equipped with an intelligent automatic backwash control system, the Shallow Sand Filter is widely used for cooling water treatment, irrigation systems, reclaimed water reuse, seawater pretreatment, industrial process water, and municipal water treatment applications.
Operation Guide
System Start-up
Verify that the filter media is correctly installed and all valves are in operating position before starting the feed pump.
Filtration Process
Water enters each filter vessel uniformly and passes through the shallow quartz sand layer where suspended particles are retained.
Automatic Backwash
When differential pressure reaches the preset value, one vessel automatically performs backwashing while other vessels remain in filtration mode.
Return to Filtration
After cleaning, the vessel automatically resumes normal filtration without interrupting system operation.
Maintenance Guide
Inspect pressure gauges regularly.
Monitor differential pressure.
Check automatic valves and actuators.
Inspect filter media condition periodically.
Clean drainage pipelines when necessary.
Perform scheduled PLC maintenance.
Performance Benefits
Excellent Suspended Solids Removal
Efficient filtration improves downstream water quality.
High-quality vessels and internal components provide reliable long-term service.
Technical Parameters
Technical Parameters
Model
FQG48-1
FQG48-2
FQG48-3
FQG48-4
FQG48-5
Single tank diameter (mm)
1200
1200
1200
1200
1200
Inlet/outlet pipe diameter (mm)
DN100
DN150
DN150
DN200
DN200
Tank material
Carbon steel
Carbon steel
Carbon steel
Carbon steel
Carbon steel
Tank anti-corrosion treatment
Electrostatic spraying
Electrostatic spraying
Electrostatic spraying
Electrostatic spraying
Electrostatic spraying
Single unit filtration area (m²)
1.1
2.2
3.3
4.4
5.5
Filtration velocity (m/h)
20-36
20-36
20-36
20-36
20-36
Single unit treatment capacity (m³/h)
20-40
40-80
60-120
80-160
100-200
Working pressure (MPa)
0.2-0.4
0.2-0.4
0.2-0.4
0.2-0.4
0.2-0.4
Backwash intensity (L/(s·m²))
8-12
8-12
8-12
8-12
8-12
Single tank backwash duration (s)
90
90
90
90
90
Backwash interval (h)
4-8
4-8
4-8
4-8
4-8
Backwash control pressure difference (MPa)
0.08
0.08
0.08
0.08
0.08
Filter media type
Natural sea sand
Natural sea sand
Natural sea sand
Natural sea sand
Natural sea sand
Filter media particle size min./max. (mm)
0.6-1.2
0.6-1.2
0.6-1.2
0.6-1.2
0.6-1.2
Filter media thickness (mm)
800mm
800mm
800mm
800mm
800mm
Single tank weight (t)
0.6
1
1.5
2
2.5
Single tank operating weight (t)
3.5
7
10.5
14
17.5
Layout type
Single row
Single row
Single row
Single row
Single row
